Electrophoretic coating is a coating method that uses an external electric field to induce the directed migration and deposition of pigments, resins, and other particles suspended in an electrophoretic solution onto the surface of an electrode. In the electrophoresis process, the coated material serves as the cathode (or anode), and the electrophoretic coating is cationic (or anionic). Taking cathodic electrophoresis as an example, when the power is turned on, positively charged coating particles move towards the surface of the workpiece as the cathode under the action of an electric field, and discharge and deposit on the surface of the workpiece to form a coating. This process is similar to electroplating, but electroplating mainly involves depositing metals, while electrophoresis involves depositing organic coatings.

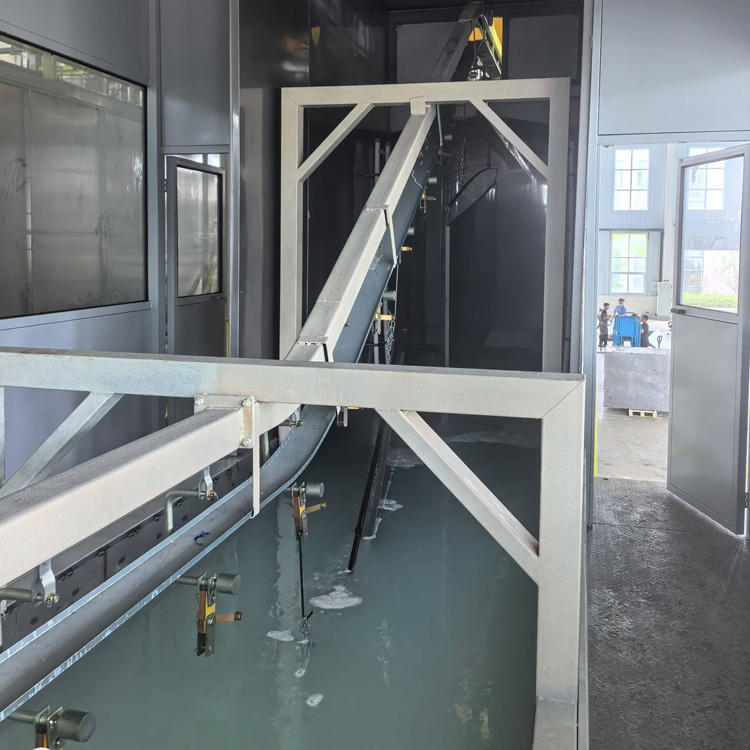

Surface pretreatment
Purpose: To ensure that the surface of the workpiece is clean, free of oil stains, rust, and other impurities, providing a good substrate for electrophoretic coating. Because if there are pollutants on the surface of the workpiece, it will affect the adhesion and quality of the electrophoretic coating.
Method
Degreasing: Use alkaline degreasing agents or organic solvents to remove grease from the surface of the workpiece. For example, for automotive body stamping parts, alkaline degreasers are commonly soaked or sprayed at a certain temperature to remove lubricating oil contaminated during the stamping process.
Acid washing: Use acid solution (such as hydrochloric acid, sulfuric acid) to remove rust and oxide scale. But after acid washing, sufficient water washing is needed to prevent acid residue.
Phosphating (or passivation): Phosphating treatment forms a layer of phosphate conversion film on the surface of the workpiece, which can improve the adhesion and corrosion resistance of the electrophoretic coating. Passivation is the formation of a very thin protective film on the metal surface, which also plays a similar role. For example, before electrophoretic coating on some hardware components, zinc based phosphating treatment can be carried out to generate a phosphating film that can better adhere to the electrophoretic coating.

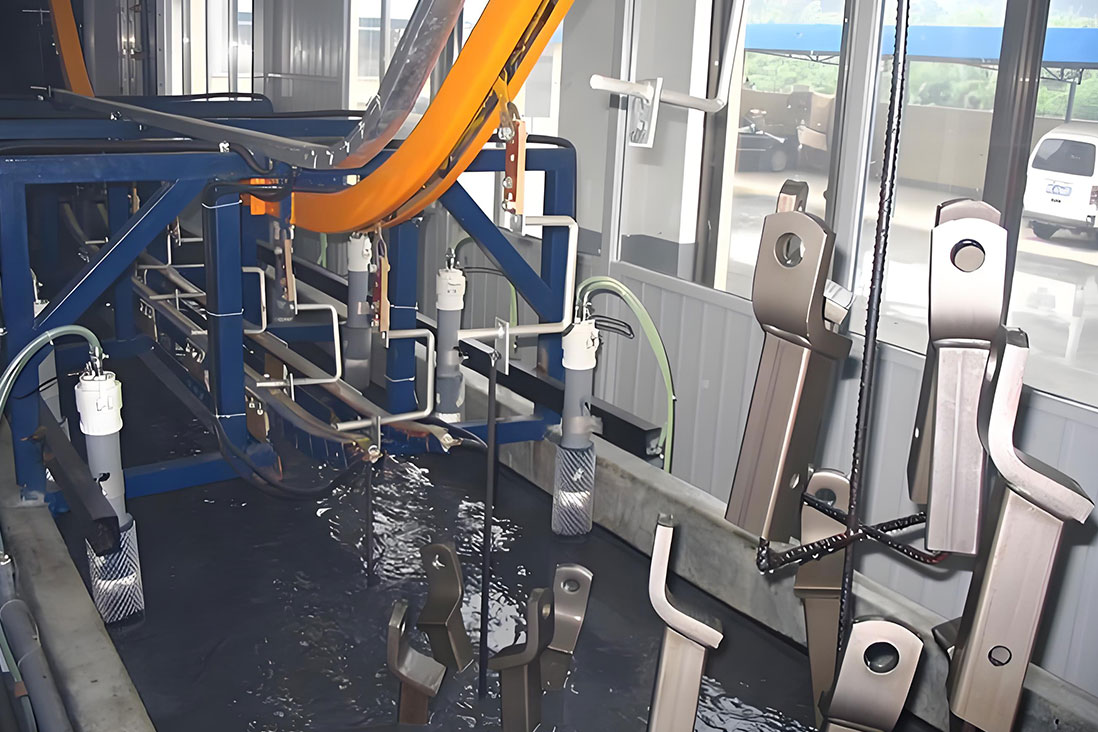

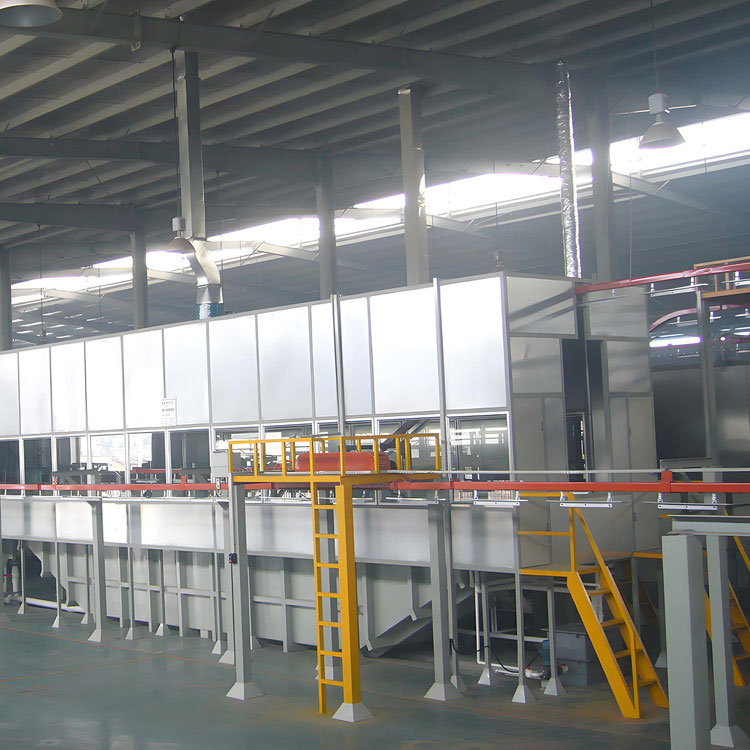

Electrophoretic coating
Preparation of electrophoresis tank solution: Prepare the electrophoresis coating into the electrophoresis tank solution according to the specified ratio and process requirements. The composition of the tank solution includes resin, pigment, solvent, additives, etc. Its parameters such as solid content, pH value, conductivity, etc. need to be strictly controlled. For example, the solid content of cathodic electrophoretic coatings is generally between 18% and 25%, and the pH value is around 5.8-6.7.

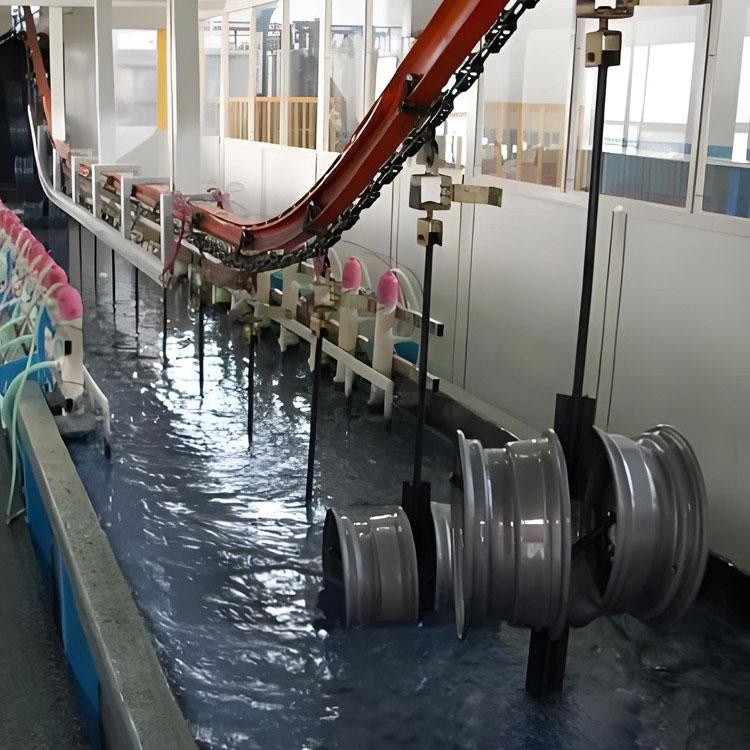

Coating operation: Immerse the pre treated workpiece into an electrophoresis tank, turn on the power, and perform electrophoresis coating. Coating voltage, time, and current density are key parameters. Generally speaking, the voltage is between 150-350V, the coating time is 2-3 minutes, and the current density varies depending on factors such as the shape and size of the workpiece. For example, in electrophoretic coating of automotive parts, by precisely controlling these parameters, the coating can be evenly deposited on the surface of complex shaped parts.
After cleaning
Purpose: To remove residual electrophoretic paint and other impurities on the surface of the workpiece after electrophoresis. If not cleaned thoroughly, residual paint may form defects such as flow marks after drying.
Process: Typically, multi-stage water washing is used, including ultrafiltration washing and pure water washing. Ultrafiltration water washing is the use of ultrafiltration devices to recover electrophoretic paint while cleaning workpieces; Pure water washing is to further clean the workpiece with deionized water. For example, in some large electrophoretic coating production lines, workpieces need to undergo 3-4 levels of water washing to ensure cleaning effectiveness.
Drying and solidification
Purpose: To cure the resin in the electrophoretic coating to form a hard, wear-resistant, and corrosion-resistant coating. Drying temperature and time are important factors affecting the performance of coatings.
Operation: Generally, hot air circulation drying furnace or infrared drying furnace is used for drying. For cathodic electrophoretic coatings, the drying temperature is usually between 160-180 ℃ and the drying time is 20-30 minutes. Different coating systems and workpiece sizes may adjust the drying parameters. For example, the drying temperature of some small hardware components can be appropriately reduced and the time can be shortened, but it is necessary to ensure that the coating can be fully cured.
High coating quality
Good uniformity: As electrophoretic coating is carried out under the action of an electric field, coating particles can be uniformly deposited on various surfaces of the workpiece, including complex shaped cavities, gaps, and other areas. For example, in the electrophoretic coating of car frames, even the internal tube structure of the frame can be uniformly coated, which is difficult to achieve with other coating methods such as spraying.
Strong adhesion: The electrophoretic coating has good adhesion to the pre treated metal surface, thanks to the conversion film formed during the pre-treatment process and the chemical properties of the electrophoretic coating. This strong adhesion makes the coating less likely to peel off during use, improving the durability of the product.
Superior environmental performance
Less organic solvent volatilization: The content of organic solvents in electrophoretic coatings is relatively low, and the amount of organic solvent volatilization during the coating process is small, reducing air pollution. Compared with traditional solvent based coating spraying, electrophoretic coating can reduce VOC (volatile organic compound) emissions by 70% -90%.
High utilization rate of coatings: During the electrophoretic coating process, most of the coatings that have not been deposited on the surface of the workpiece can be recovered through ultrafiltration devices, with a coating utilization rate of up to 90% -95%, reducing coating waste and processing costs.
High production efficiency
High degree of automation: The electrophoretic coating process is easy to achieve automated production, and the workpieces can be transported to various workstations for processing through an automated conveying system, reducing manual operations and improving production speed and product quality stability. For example, in the production of large household appliance casings, the use of electrophoretic coating automated production lines can quickly and efficiently process a large number of workpieces.

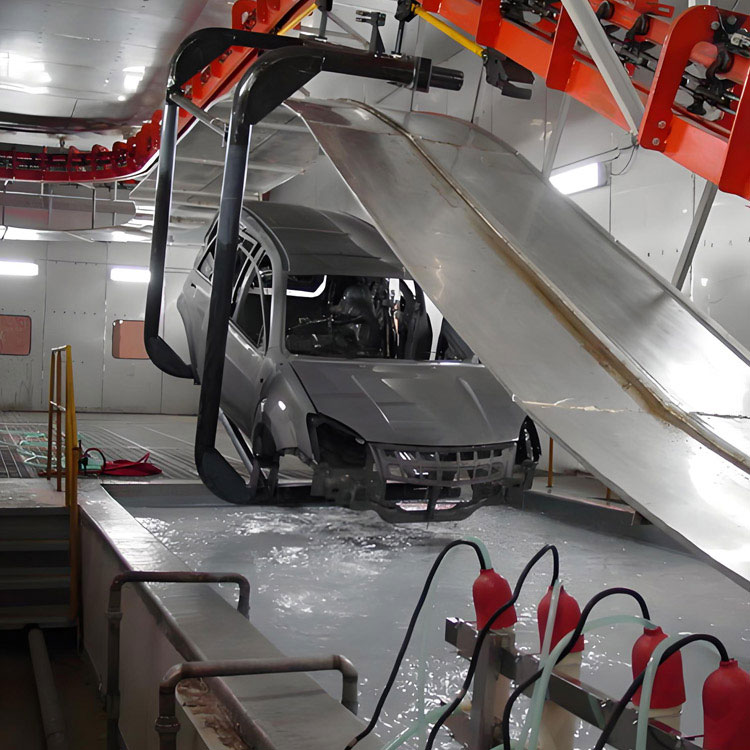

Automotive industry
Almost all car bodies, frames, components, etc. use electrophoretic coating as a primer. It provides excellent anti-corrosion performance for cars and extends their service life. For example, the coating thickness of modern car body electrophoretic primer is generally between 20-30 μ m, which can effectively resist corrosion factors such as salt spray and rainwater during road driving.
Home appliance industry
Used for coating the shells of household appliances such as washing machines, refrigerators, and air conditioners. Electrophoretic coating can give home appliance shells a good appearance and corrosion resistance, while meeting environmental requirements. For example, the shells of some high-end washing machines are coated with color electrophoretic coating, which is both beautiful and durable.
Hardware products industry
Paint hardware tools, building hardware and other products. It can improve the decorative and corrosion resistance of hardware products, for example, in the electrophoretic coating of hardware tool handles, it can make the handle surface have a comfortable touch and good anti slip performance.

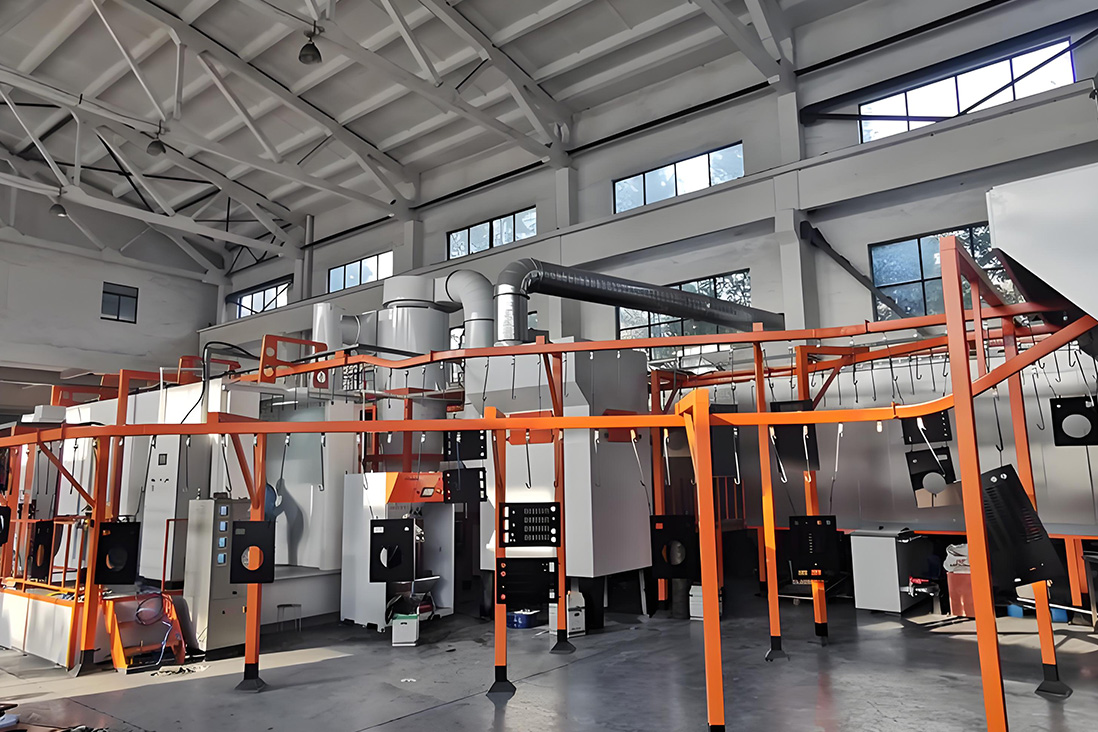

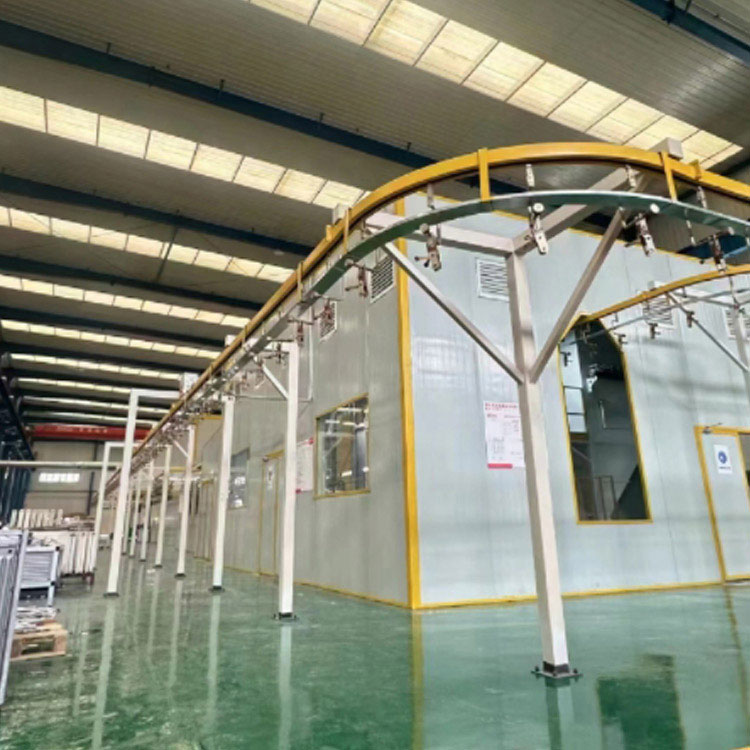

Powder electrostatic spray gun: It is one of the core components of powder spraying equipment, which relies on high-voltage static electricity to "transport" powder to the workpiece to be sprayed. Its electrostatic and aerodynamic properties directly affect the powder coating rate and film thickness control. By precisely controlling the voltage, current, and airflow parameters of the spray gun, uniform and efficient powder spraying can be achieved.
Recycling device: There are two main forms commonly used: filter type and double cyclone. Filter type recycling relies on high-performance filtering devices (filter elements), which can recycle and use more than 99% of the powder spraying amount. It has a simple structure, easy maintenance, and is suitable for spraying operations with single colors or fewer color types; The dual cyclone recycling device is mainly used in color changing spray rooms, which has a fast color changing efficiency and can meet the needs of frequent color changes.
Powder room: The entire spraying process is enclosed in a relatively closed environment, and after precise calculation and reasonable production and processing, the powder will not overflow, avoiding environmental pollution and achieving the recycling and use of powder. Powder room wall materials usually include PP, PVC, and specialized Apogee, which have good corrosion resistance and sealing properties.
Powder supply device: generally composed of a powder bucket (containing spray powder) and a sieve. New powder can be directly added to the powder bucket, and the recovered powder is sieved through a sieve to remove impurities and reused, ensuring the quality of the powder and the spraying effect.
Excellent environmental performance: Powder coating is 100% solid content, free of organic solvents, and emits no volatile organic compounds (VOCs) during production and use. It does not cause pollution to the atmospheric environment, meets environmental requirements, and also improves the working conditions of workers.
High utilization rate of raw materials: During the powder spraying process, the powder that does not adhere to the workpiece can be collected and recycled through a recycling device. The utilization rate can usually reach over 95%, even up to 99%, greatly reducing material waste and lowering production costs.
Good coating quality: After pre-treatment, the powder coating can be applied in one go to obtain a coating with sufficient thickness, without the need for primer. The coating is dense, has strong adhesion, good impact strength and toughness, high edge coverage, excellent chemical corrosion resistance and electrical insulation performance, which can effectively extend the service life of the workpiece.
High production efficiency: Powder spraying is easy to achieve automated operation, and the motion trajectory and spraying parameters of the spray gun can be controlled through programming to improve the consistency and uniformity of spraying, while reducing manual intervention and improving production efficiency. It is suitable for large-scale, assembly line production operations.
High safety: Due to the absence of organic solvents in powder coatings, there are no safety hazards such as fire and explosion. During the spraying process, powder particles are adsorbed on the surface of the workpiece under static electricity, and will not float around, reducing the harm of dust to operators.
Color diversity: Powder coatings can be formulated into various colors according to different needs, and can achieve good color coverage and uniformity, meeting the personalized requirements of different users for product appearance colors.
Automotive industry: Used for surface coating of car bodies, components, engines, wheels, etc., which can improve the corrosion resistance, wear resistance, and appearance quality of cars, while meeting the requirements of the automotive industry for environmental protection and production efficiency.
Home appliance industry: Spray coating the outer shell of household appliances such as refrigerators, washing machines, air conditioners, televisions, etc., to give them good appearance decoration and weather resistance, and enhance their market competitiveness.
The electronic and electrical industry includes switchgear, instrument cabinets, computer casings, and peripheral equipment casings. Powder coating can provide good electrical insulation and protection performance, ensuring the normal operation and service life of electronic and electrical equipment.
Metal products industry: Surface treatment of various metal products, such as metal furniture, hardware tools, building metal components, mechanical parts, etc., can enhance the corrosion resistance and decorative properties of metal products, and extend their service life
Building materials industry: For example, the spraying of aluminum profiles, steel doors and windows, curtain walls, etc. can not only improve the weather resistance and decorative properties of building materials, but also meet the environmental and energy-saving requirements of the construction industry.
Equipment inspection and maintenance: Before starting up, all safety protection facilities and safety signs should be checked to ensure that voltage, air pressure, water pressure and other parameters meet the requirements. The safety grounding of the static electricity generation system should be reliable; Regularly clean, maintain and upkeep the equipment, check whether the spray gun, filter element, pipeline and other components are normal, and replace worn or damaged parts in a timely manner.
Powder quality control: Select powder coatings with qualified quality, uniform particle size, and good flowability, and avoid using powders that are damp, clumped, or expired; Recycled powder must be screened and impurities removed before being mixed with new powder in a certain proportion to ensure the performance and spraying effect of the powder.
Operating standards: Operators must wear labor protection equipment such as safety helmets, protective masks, anti-static work clothes, etc., to avoid skin and respiratory contact with powder; During the spraying process, it is necessary to maintain a stable distance and angle between the spray gun and the workpiece, control the spraying speed and the movement speed of the spray gun, and ensure that the coating is uniform and consistent; At the same time, attention should be paid to avoiding collisions between the spray gun and the workpiece to prevent damage to the spray gun and workpiece.
Ventilation and fire and explosion prevention: During the powder spraying process, a certain amount of dust will be generated, and a good ventilation system must be equipped to timely discharge the dust and prevent explosion accidents caused by excessive dust concentration; Smoking and open flame operations are prohibited in the spray booth to avoid fires or explosions caused by static sparks or other sources of fire.
Quality inspection and defect handling: After powder coating, the coating quality should be checked immediately. If defects are found, they should be dealt with in a timely manner. If the defect range is small, it can be repaired with the same color powder before curing; If the defect range is large and affects the surface quality, it is necessary to sand it with sandpaper and spray it again, or use a paint remover to remove the coating before spraying.

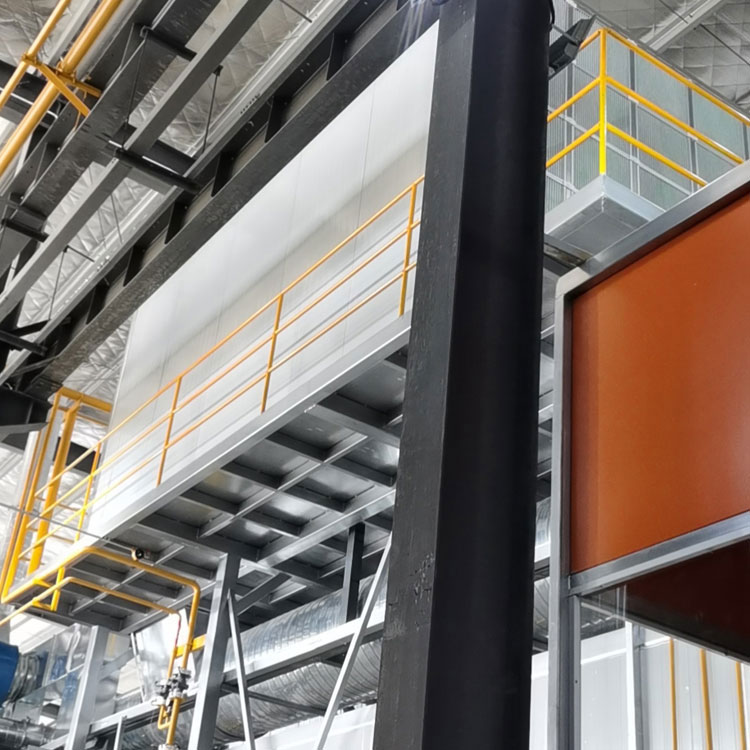

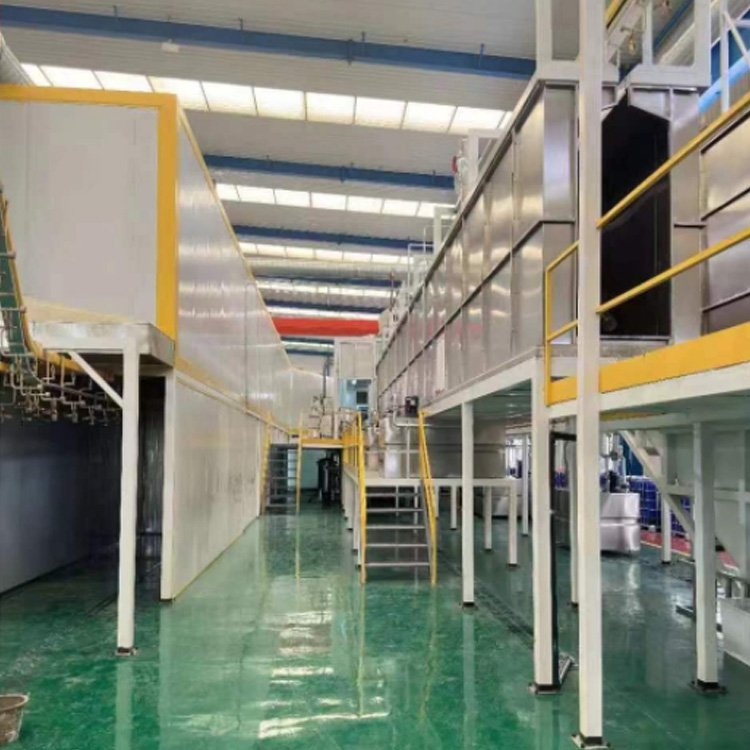

Automatic painting equipment is a device that can automatically complete painting operations and plays a key role in many fields such as industrial production.
Reciprocating automatic spray painting equipment
Working principle: By using a robotic arm or spray gun to move back and forth on a set track, the painting of the workpiece can be achieved. This movement method can ensure that the surface of the workpiece can be evenly painted within a certain range.
Applicable scenarios: Suitable for workpieces with regular shapes and large flat areas, such as wooden boards, metal sheets, etc. For example, in furniture production, for large areas of tabletops, cabinet doors, and other components, reciprocating automatic painting equipment can efficiently perform painting operations, ensuring the surface flatness and color uniformity.
Rotating automatic painting equipment
Working principle: The workpiece is fixed on a rotating platform, and the spray gun is fixed in one position. When the workpiece rotates, the spray gun sprays paint on it. This method can evenly distribute the paint on the surface of the rotating workpiece.
Applicable scenarios: Suitable for workpieces with rotating body shapes, such as cylindrical metal pipes, plastic pipes, etc. Taking the shaft parts in automotive components as an example, the rotary automatic paint spraying equipment can effectively spray paint on them, ensuring that the circumferential surface is fully covered.
Robot automatic painting equipment
Working principle: Based on robot technology, through pre programming, the robotic arm of the robot can flexibly control parameters such as the position, angle, and spray amount of the spray gun, and can accurately spray paint according to the complex shape of the workpiece.
Applicable scenarios: Suitable for workpieces with complex and irregular shapes, such as car bodies, sculptures, etc. For example, in automobile manufacturing, robot automatic painting equipment can accurately paint every corner and curved part of the car body, and can quickly adjust the painting strategy according to the design requirements of different car models.
Spray gun system
Spray gun: It is a key component that atomizes and sprays paint onto the surface of the workpiece. There are various types of spray guns, such as air spray guns, airless spray guns, electrostatic spray guns, etc. Air spray gun uses compressed air to atomize paint, with good atomization effect, suitable for fine spray painting; Airless spray gun is used to extrude and atomize paint under high pressure, with fast spraying speed and large flow rate, suitable for large-area painting; Electrostatic spray gun utilizes the principle of electrostatic adsorption to make paint particles charged and better adhere to the surface of conductive workpieces, thereby improving paint utilization and adhesion.
Paint supply device: Its main function is to provide a stable supply of paint for the spray gun. It includes paint pumps, paint filters, paint pipelines, etc. The paint pump can extract paint from the storage container and transport it to the spray gun, the paint filter can remove impurities from the paint, prevent clogging of the spray gun, and the paint pipeline connects various components to ensure smooth transfer of paint.
Spray gun controller: It can accurately control various parameters of the spray gun. For example, it can adjust spray pressure, spray speed, spray angle, and paint flow rate. By controlling these parameters, different painting effects can be achieved to meet the painting needs of various workpieces.

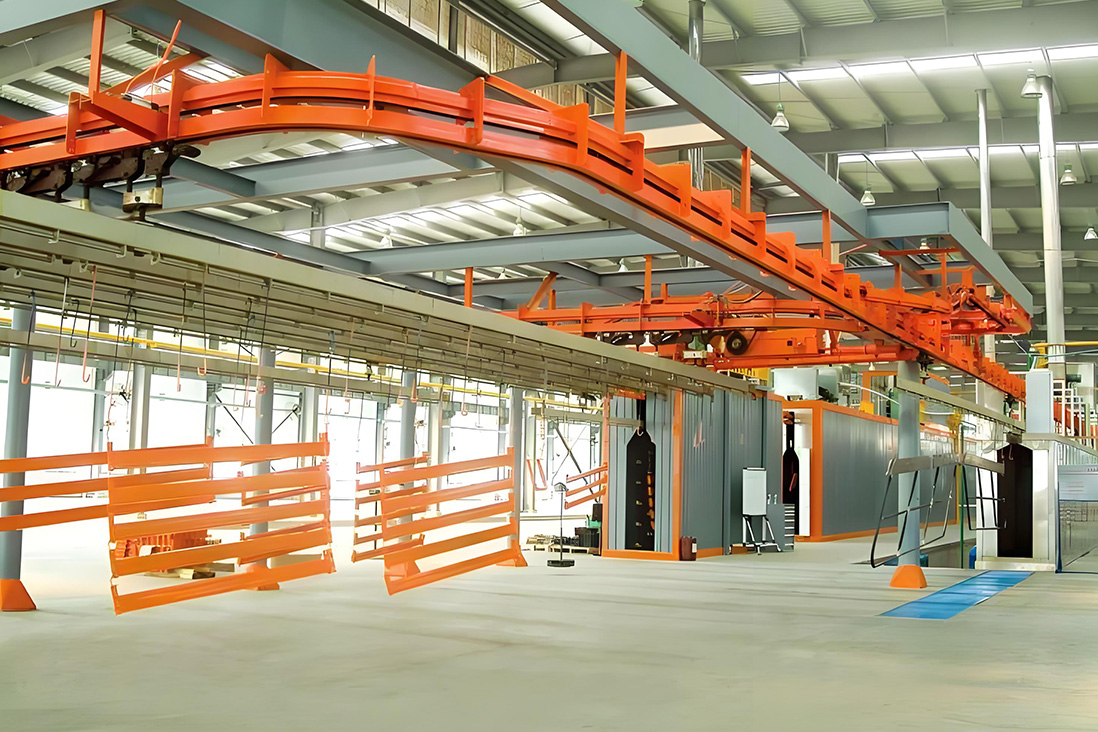

conveying system
Function: Responsible for transporting workpieces to the painting area and transporting them away after painting is completed. There are various types of conveyor systems, such as suspended conveyor chains, ground rail conveyor chains, belt conveyors, etc.
For example, suspended conveyor chains are usually used for large workpieces or mass production. On the automobile production line, the car body passes through various painting stations in sequence through a suspended conveyor chain, which can fully utilize space while ensuring the stability of the workpiece during transportation. The ground rail conveyor chain is suitable for heavier workpieces and can provide more stable support.
Ventilation system
Function: During the painting process, the ventilation system is mainly used to exhaust paint mist and harmful gases, while introducing fresh air. A good ventilation system can improve the working environment, reduce the harm of paint mist to the health of operators, and facilitate the drying of paint.
Composition: It includes fans, ventilation ducts, air filters, etc. The fan is the power source of the ventilation system, which discharges paint mist and harmful gases outdoors through ventilation ducts or after purification treatment before discharge. Air filters can filter the fresh air entering the painting area, remove dust and other impurities, and ensure the quality of painting.
Control system
Function: The control system is the brain of the automatic painting equipment, which can control and monitor the entire painting process. It can set and adjust various parameters of spray painting equipment, such as spray painting speed, spray gun angle, ventilation volume, etc. At the same time, it can also monitor the operating status of the equipment, detect faults in a timely manner, and take corresponding measures.
Implementation method: Generally achieved through programmable logic controller (PLC) or computer control system. Operators can input commands through the operation panel or touch screen to operate and manage the device.
Improve the quality of paint spraying
Uniformity: Automatic painting equipment can accurately control painting parameters, making the distribution of paint on the surface of the workpiece more uniform. Compared to manual painting, it can effectively avoid problems such as uneven paint thickness and sagging. For example, in the painting process of electronic product casings, automatic painting equipment can ensure that the color and glossiness of each casing remain consistent.
Accuracy: For complex shaped workpieces, automatic painting equipment can better cover every corner and gap of the workpiece through precise programming and flexible spray gun control. In the painting of car bodies, robot automatic painting equipment can accurately paint details such as door handles and rearview mirrors.
Improve production efficiency
Speed: The painting speed of automatic painting equipment is usually much faster than manual painting. It can work continuously, reducing the intermittent time during manual painting process. For example, in the mass production of some small hardware components, automatic painting equipment can significantly improve production speed and meet the needs of large-scale production.
Stability: Due to the automatic painting equipment working according to preset programs and parameters, its production process is more stable. It will not be affected by factors such as the emotions and physical strength of operators like manual painting, thus ensuring the stability and consistency of product quality.
Cost reduction
Labor cost: Reduced reliance on a large number of spray painters and lowered labor costs. Although some technical personnel are required for equipment maintenance and programming, the overall labor cost has been significantly reduced. For example, in a medium-sized spray painting workshop, the use of automatic spray painting equipment may reduce labor costs by 30% to 50%.
Paint cost: Automatic paint spraying equipment can more accurately control the amount of paint used, improve paint utilization, and thereby reduce paint costs. For example, an electrostatic spray gun can use the principle of electrostatic adsorption to better adhere paint to the surface of the workpiece, reduce paint waste, and improve paint utilization by up to 20% -30%.

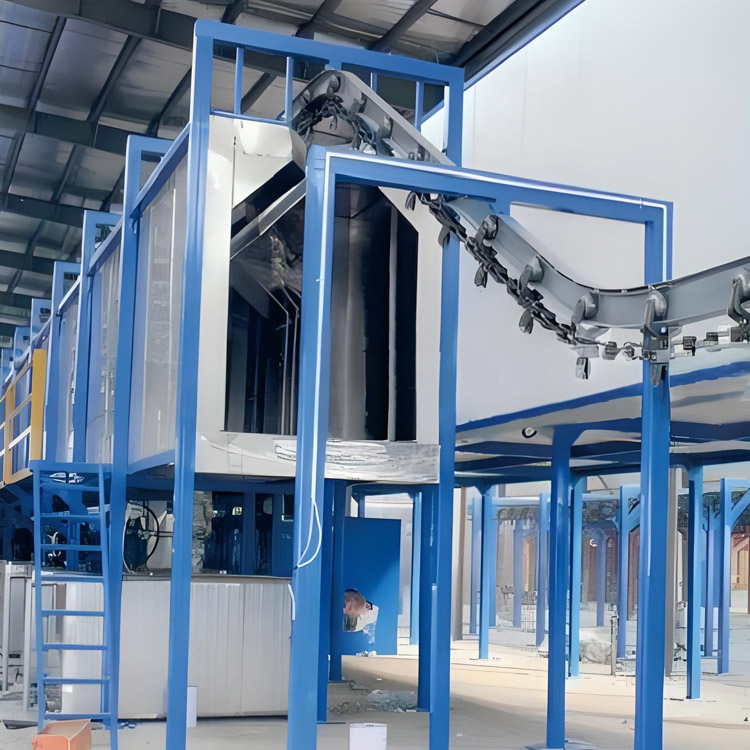

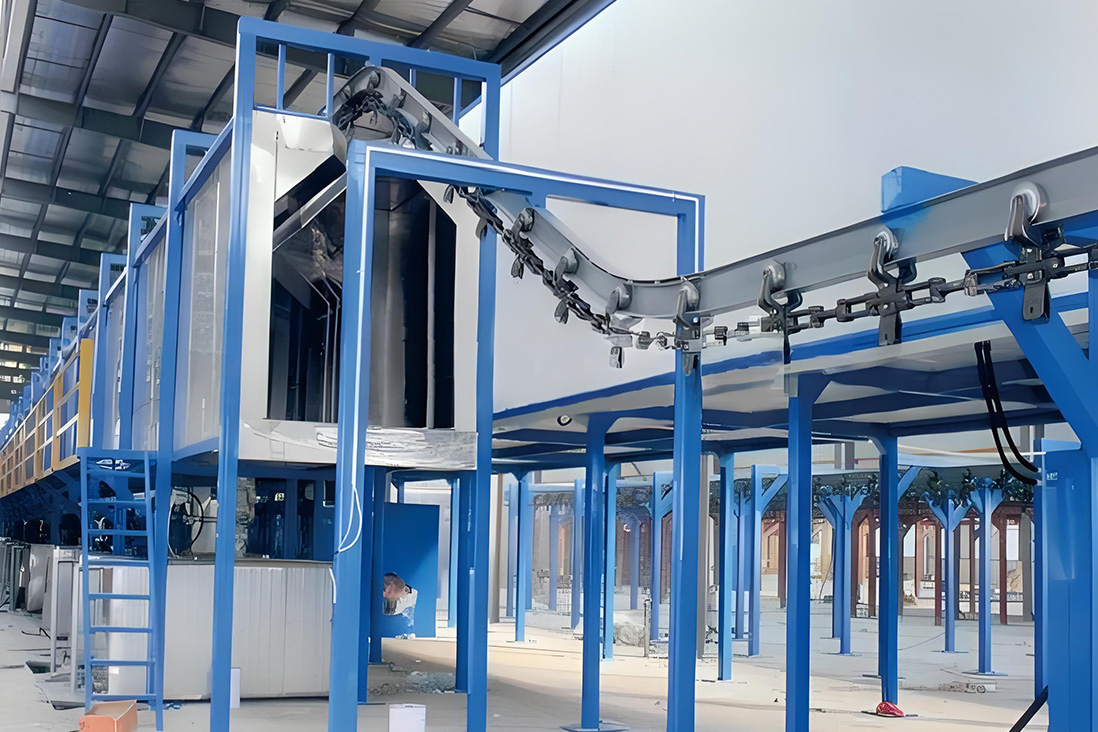

High quality coating pre-treatment equipment is offered by China manufacturer Qingguo Intelligent.Coating Pre-treatment Equipment is used to prepare the surface of a workpiece before the coating process to ensure good adhesion, corrosion resistance, and overall coating quality.Here's a detailed look:
1.Degreasing Equipment
- Spray - type Degreasing Machine: It typically consists of a spraying chamber, a set of spray nozzles, a circulation pump, and a tank for the degreasing solution.The workpieces are placed on a conveyor belt and passed through the spraying chamber.The spray nozzles are designed to evenly distribute the degreasing solution, which usually contains alkaline chemicals, surfactants, or solvents, over the surface of the workpieces.The circulation pump ensures a continuous supply of the solution, and the tank stores and recycles the used solution after filtration.
- Immersion - type Degreasing Tank: Comprises a large tank filled with the degreasing agent.Workpieces are immersed in the solution for a certain period.The tank may have heating elements to maintain an optimal temperature for better degreasing performance.Agitation devices such as air spargers or mechanical stirrers are often installed to enhance the contact between the solution and the workpiece surface and to dislodge stubborn grease.
2.Pickling Equipment
- Acid Pickling Tank: Made of acid - resistant materials such as rubber - lined steel or fiberglass - reinforced plastic.It contains an acid solution, usually hydrochloric acid, sulfuric acid, or phosphoric acid, depending on the material of the workpiece and the type of scale or oxide to be removed.The workpieces are immersed in the acid tank, and the acid reacts with the surface oxides, rust, or other contaminants to dissolve them.The tank is equipped with a ventilation system to remove the fumes generated during the pickling process.
- Spray - Pickling System: Similar to the spray - type degreasing machine in structure.The acid solution is sprayed onto the workpiece surface through nozzles.This method is more suitable for workpieces with complex shapes or for situations where a more controlled pickling process is required.The sprayed acid solution can reach areas that may be difficult to access in an immersion - type tank.
3.Phosphating Equipment
- Phosphating Tank: Contains a phosphating solution, which is usually a mixture of phosphoric acid, metal salts (such as zinc, manganese, or iron salts), and accelerators.The workpieces are immersed in the tank, and a chemical reaction occurs on the surface, forming a phosphate conversion coating.The tank has a temperature - control system to maintain the proper reaction temperature, usually around 50 - 95°C.The coating thickness can be controlled by adjusting the immersion time, solution concentration, and temperature.
- Spray - Phosphating System: Used to apply the phosphating solution to the workpiece surface by spraying.It offers a more uniform coating on workpieces with irregular shapes.The system also includes a filtration unit to remove any particulate matter from the phosphating solution and a drying unit to remove excess water before the coating process.
4.Shot Blasting Equipment
- Shot Blasting Machine: Consists of a blasting chamber, a shot - storage hopper, a blast wheel, and a dust - collection system.The workpieces are placed inside the blasting chamber.The blast wheel accelerates the abrasive media (such as steel shot, sand, or grit) and projects them onto the workpiece surface.The abrasive media removes rust, scale, and old coatings by impact.The shot - storage hopper stores and feeds the abrasive media to the blast wheel.The dust - collection system captures the dust generated during the blasting process to maintain a clean working environment.
1.Improved Coating Adhesion
- The pre - treatment processes remove contaminants such as grease, rust, and oxides from the workpiece surface.For example, phosphating forms a micro - porous phosphate coating that provides excellent mechanical interlocking with the subsequent coating, ensuring that the coating adheres firmly to the surface.This helps to prevent the coating from peeling or flaking off during use.
2.Enhanced Corrosion Resistance
- By removing corrosive substances and creating a protective conversion coating (like the phosphate coating), the pre - treatment equipment significantly improves the corrosion - resistance of the workpiece.The phosphate coating acts as a barrier between the base material and the environment, inhibiting the penetration of moisture and corrosive agents.
3.Uniform Coating Appearance
- Shot blasting, in particular, can create a uniform and clean surface texture.Degreasing and pickling also ensure that the surface is free from irregularities caused by contaminants.This leads to a more even application of the coating, resulting in a better - looking and more consistent finish.
4.Increased Coating Lifespan
- The combination of improved adhesion and enhanced corrosion resistance provided by pre - treatment means that the coating can last longer.This is especially important for products that are exposed to harsh environments such as outdoor structures, automotive parts, and industrial machinery.
1.Automotive Industry
- In the production of car bodies and parts, Coating Pre-treatment equipment is used to prepare the surfaces of components such as engine blocks, chassis, and body panels.Degreasing removes oil and grease from machining operations, pickling treats any surface rust, and phosphating provides a good base for the subsequent painting or powder coating, improving the durability and appearance of the vehicle's finish.
2.Appliance Manufacturing
- For household appliances like refrigerators, washing machines, and air conditioners, the equipment is used to pre - treat the outer shells.Degreasing and pickling ensure a clean surface, and phosphating helps the paint adhere well and provides corrosion protection, which is essential for the long - term performance and appearance of the appliances.
3.Metal Furniture Industry
- Metal furniture frames and panels are pre - treated to enhance the adhesion of the paint or powder coating.Shot blasting can give a decorative texture to the surface while also removing any rust or scale.Degreasing and phosphating further improve the quality of the coating, making the furniture more durable and aesthetically pleasing.
4.General Industrial Machinery
- Machinery parts such as gears, shafts, and housings are pre - treated to protect them from corrosion and to ensure a good coating finish.The pre - treatment processes help to maintain the integrity of the parts during operation and extend their service life.
1.Chemical Handling
- When using degreasing, pickling, and phosphating chemicals, proper personal protective equipment (PPE) such as gloves, goggles, and acid - resistant aprons must be worn.The chemicals should be stored in a well - ventilated and properly labeled area, away from incompatible substances.The handling and disposal of chemical waste must comply with environmental regulations.
2.Equipment Maintenance
- Regularly clean and maintain the equipment to prevent clogging of nozzles in spray - type systems and to ensure the proper functioning of pumps, valves, and agitation devices.For shot blasting equipment, check and replace the abrasive media regularly to maintain the blasting efficiency and quality.The dust - collection system should be maintained to prevent dust from escaping and to ensure a healthy working environment.
3.Process Control
- Monitor and control the process parameters such as temperature, concentration, and immersion or spraying time.Deviations from the recommended parameters can lead to incomplete pre - treatment or over - treatment, which may affect the coating quality.Use appropriate testing methods such as titration for chemical solutions and surface roughness measurements for shot - blasted surfaces to ensure the quality of the pre - treatment process.
4.Safety in Operation
- For equipment that involves high - pressure spraying (such as some degreasing and phosphating systems) or high - speed abrasive projection (shot blasting), ensure that safety guards are in place and that operators are trained to use the equipment safely.In addition, proper ventilation is essential to remove fumes and dust generated during the pre - treatment processes to prevent health hazards to the operators.

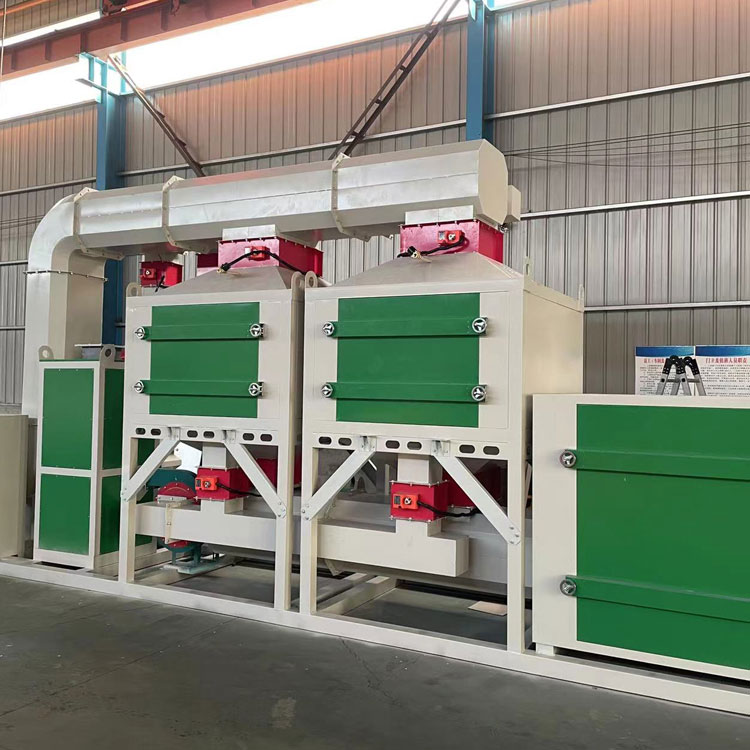

Find a huge selection of waste gas treatment equipment from China at Qingguo Intelligent. Waste Gas Treatment Equipment refers to a variety of devices and systems designed to remove pollutants and contaminants from industrial or other waste gases before they are released into the atmosphere. Here's a detailed introduction:

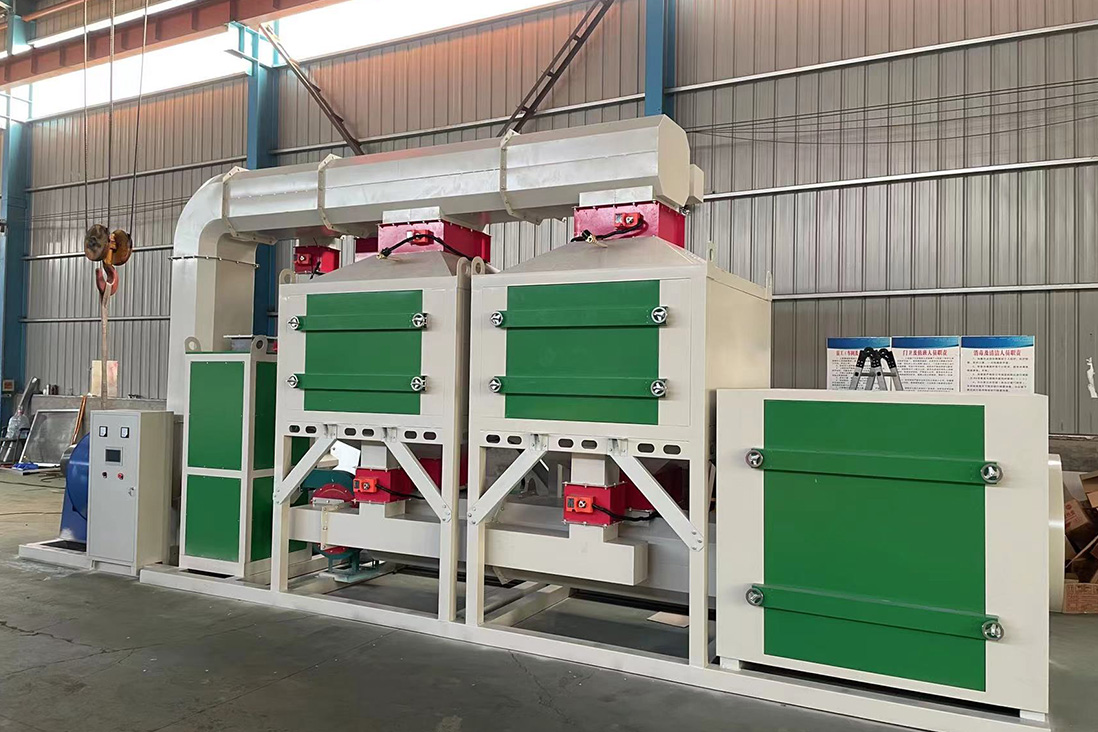

Absorption Equipment
Packed Tower: It consists of a cylindrical shell filled with packing materials such as Raschig rings or Berl saddles. The waste gas enters from the bottom and flows upward through the packing. The liquid absorbent, which can be an alkaline or acidic solution depending on the pollutants to be removed, is sprayed from the top and trickles down through the packing. As the gas and liquid come into contact, the pollutants in the gas are absorbed into the liquid phase. For example, in the treatment of sulfur dioxide - containing flue gas from a power plant, an alkaline absorbent like limestone - gypsum slurry can be used to absorb SO₂ through chemical reactions.
Plate Tower: It contains multiple plates or trays. The gas rises through the perforations or openings in the plates, and the liquid absorbent flows across the plates. This provides a large contact area for gas - liquid mass transfer. Each plate acts as a stage for absorption, and the number of plates can be adjusted according to the required removal efficiency.
Adsorption Equipment
Fixed - Bed Adsorber: It has a bed of adsorbent material such as activated carbon or zeolite. The waste gas passes through the fixed bed, and the pollutants are adsorbed onto the surface of the adsorbent. The adsorbent has a large surface area and micropores that can trap and hold the pollutant molecules. For example, in the treatment of volatile organic compounds (VOCs), activated carbon is a commonly used adsorbent. As the adsorbent becomes saturated over time, it needs to be regenerated or replaced.
Rotary Adsorber: Consists of a rotating drum with sectors filled with adsorbent. The waste gas enters the drum, and as it rotates, different sectors are exposed to the gas stream for adsorption. The advantage is that it can operate continuously, with one sector being regenerated while others are in the adsorption process.
Combustion Equipment
Direct - Flame Combustor: In this equipment, the waste gas containing combustible pollutants such as VOCs is directly burned in a burner. The high - temperature combustion process converts the pollutants into carbon dioxide and water vapor. The combustion chamber is designed to ensure complete combustion with sufficient air supply and proper mixing of the gas and air. It usually requires a fuel source like natural gas or propane to initiate and maintain the combustion process.
Catalytic Combustor: It uses a catalyst such as platinum, palladium, or other metal oxides to lower the activation energy required for combustion. The waste gas passes over the catalyst bed, and the pollutants are oxidized at a lower temperature compared to direct - flame combustion. This reduces fuel consumption and energy requirements. For example, in the treatment of exhaust gases from paint booths containing organic solvents, catalytic combustion can be an effective method.
Condensation Equipment
Surface Condenser: It has a cooling surface, usually made of metal tubes or plates. The waste gas comes into contact with the cold surface, and the pollutants with a higher boiling point condense into a liquid phase and are collected. The cooling medium can be chilled water, refrigerant, or other cooling fluids. For example, in the recovery of solvents from waste gas in the printing industry, a surface condenser can be used to condense and recover the solvents.
Direct - Contact Condenser: In this type, a cold liquid (such as water) is sprayed directly into the waste gas stream. The gas - liquid contact causes the pollutants to condense and mix with the liquid. The mixture is then separated to recover the condensed pollutants and the liquid for reuse or further treatment.
Environmental Protection
By effectively removing pollutants such as sulfur dioxide, nitrogen oxides, VOCs, particulate matter, and heavy metals from waste gases, it significantly reduces air pollution and helps to meet environmental regulations. This protects the health of humans, animals, and plants and mitigates the negative impacts of air pollution on the ecosystem, such as acid rain, smog formation, and damage to the ozone layer.
Resource Recovery
Some waste gas treatment equipment, such as condensation and adsorption systems, can recover valuable substances from waste gases. For example, solvents recovered from industrial processes can be reused, reducing the need to purchase new solvents and thus saving costs and resources.
Compliance with Regulations
With increasingly strict environmental laws and regulations, using waste gas treatment equipment is essential for industries to avoid hefty fines and legal issues. It enables businesses to operate within the legal framework and maintain a good corporate image.
Improved Public Health and Safety
By reducing the emission of harmful pollutants, it decreases the risk of respiratory diseases, heart diseases, and other health problems caused by air pollution. In addition, it also reduces the potential for fire and explosion hazards associated with the presence of combustible pollutants in waste gases.
Power Generation Industry
In coal - fired power plants, waste gas treatment equipment is used to remove sulfur dioxide, nitrogen oxides, and particulate matter from flue gas. Flue - gas desulfurization (FGD) systems, such as wet scrubbers or dry scrubbers, are used to reduce SO₂ emissions. Selective catalytic reduction (SCR) or selective non - catalytic reduction (SNCR) systems are employed to control NOₓ emissions.
Chemical Industry
Chemical plants produce a wide range of waste gases containing various pollutants. Absorption equipment can be used to treat acid - gas emissions such as hydrogen chloride and sulfur dioxide. Adsorption and combustion equipment are used to handle VOCs released during chemical reactions and solvent - using processes.
Petroleum and Refining Industry
Refineries generate waste gases with a high content of hydrocarbons, sulfur - containing compounds, and other pollutants. Waste gas treatment equipment such as catalytic crackers and hydrotreaters are used to convert and remove these pollutants. Combustion and adsorption systems are also used to treat flare gases and VOCs emissions.
Manufacturing Industry (e.g., Painting, Printing, and Plastics)
In the painting industry, waste gas treatment equipment like catalytic combustion units or activated - carbon adsorption beds are used to treat the VOCs - rich exhaust gases from paint booths. In the printing industry, condensation and adsorption equipment can be used to recover solvents from the waste gas. In the plastics industry, combustion or adsorption equipment is used to handle the emissions of plasticizers and other volatile substances.
Proper Installation and Commissioning
The equipment must be installed correctly according to the manufacturer's instructions and engineering standards. This includes proper alignment of components, secure connections of pipes and ducts, and accurate installation of electrical and control systems. Commissioning should involve thorough testing of the equipment's performance under different operating conditions to ensure it meets the design requirements.
Regular Maintenance and Inspection
Routine maintenance is crucial to keep the equipment in good working condition. This includes cleaning of filters, replacement of worn - out adsorbents or catalysts, inspection of pumps and valves for leaks, and checking of temperature and pressure sensors. Regular inspection of the equipment's structure for corrosion and damage is also necessary.
Monitoring and Control of Operating Parameters
The key operating parameters such as gas flow rate, temperature, pressure, and the concentration of pollutants in the waste gas should be continuously monitored. Any deviation from the normal operating range can affect the treatment efficiency and may lead to equipment failure or non - compliance with environmental standards. Automatic control systems should be in place to adjust the operation of the equipment based on the monitored parameters.
Safety Precautions
Depending on the type of waste gas treatment equipment, there may be various safety hazards. For example, in combustion equipment, there is a risk of explosion due to the presence of combustible gases. Adequate safety measures such as explosion - proof electrical systems, gas detectors, and fire - suppression systems should be installed. In adsorption equipment using certain chemicals, proper handling and storage of the adsorbents to avoid chemical spills and exposure are essential.
