Casting Electrophoretic Coating Production Line

Equipment Name: Casting Electrophoretic Coating Production Line

Equipment Description:

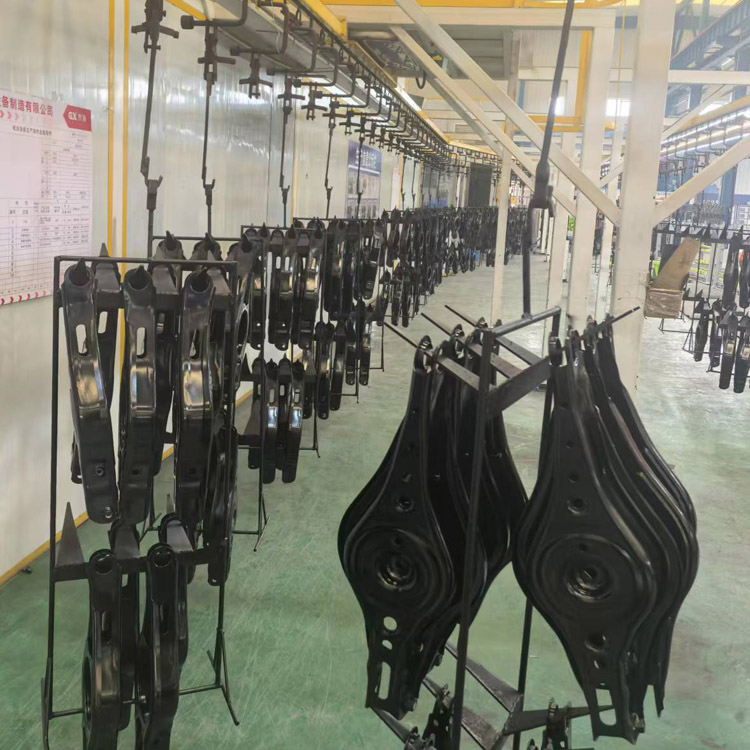

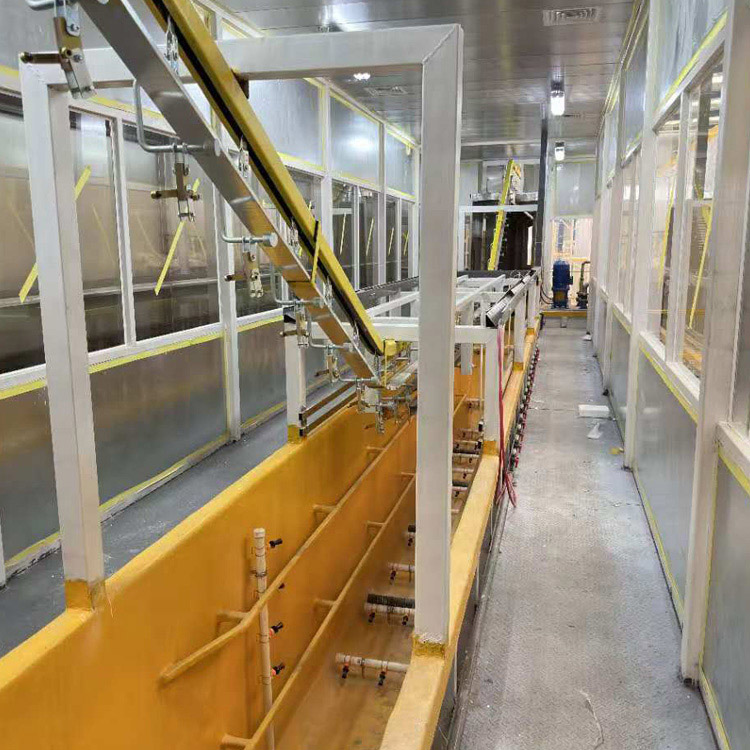

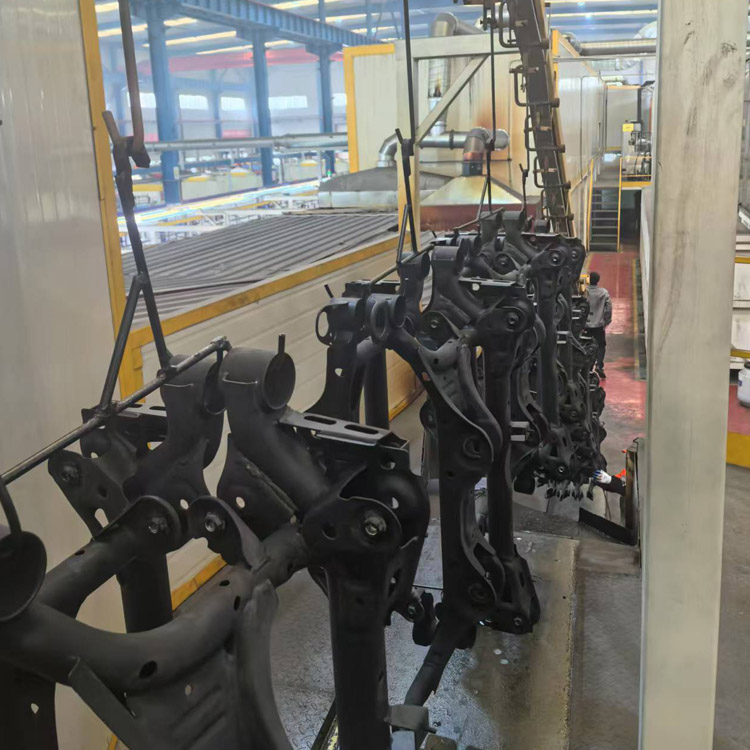

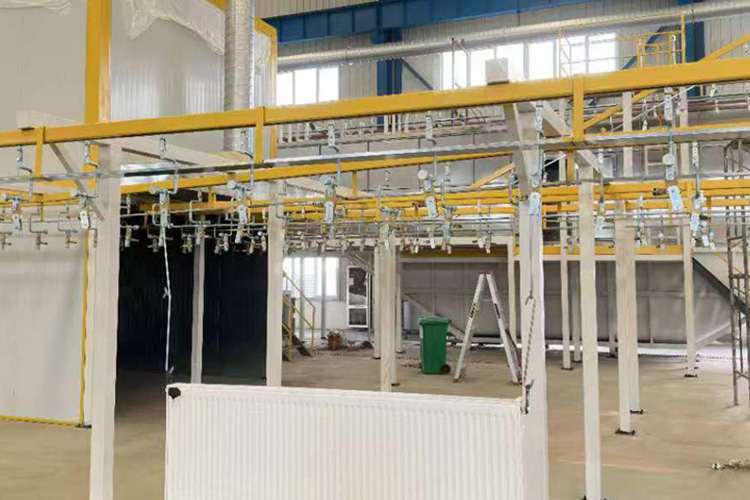

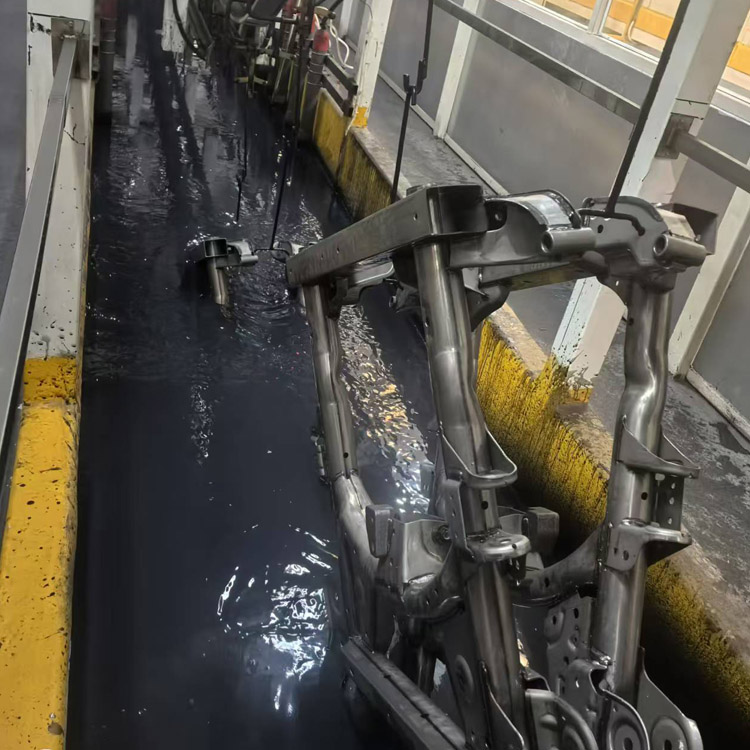

The casting electrophoretic coating production line is transported in the form of hanging chains, with the main workpiece material being cast iron. The entire equipment includes pre-treatment and spraying processes. The process flow is as follows: pre degreasing, main degreasing, water washing, pure water washing, silane, pure water washing, automatic water blowing, electrophoresis, UF0-UF1, pure water washing, fresh pure water washing, automatic water blowing, one drop of water, electrophoresis curing, cooling, powder spraying, paint curing, and natural cooling. Throughout the entire production process, the procedures are complete and the process equipment is advanced; The operating conditions are safe and good, and the workshop environment is clean.

Main structure and components:

1. Composition of pre-processing equipment

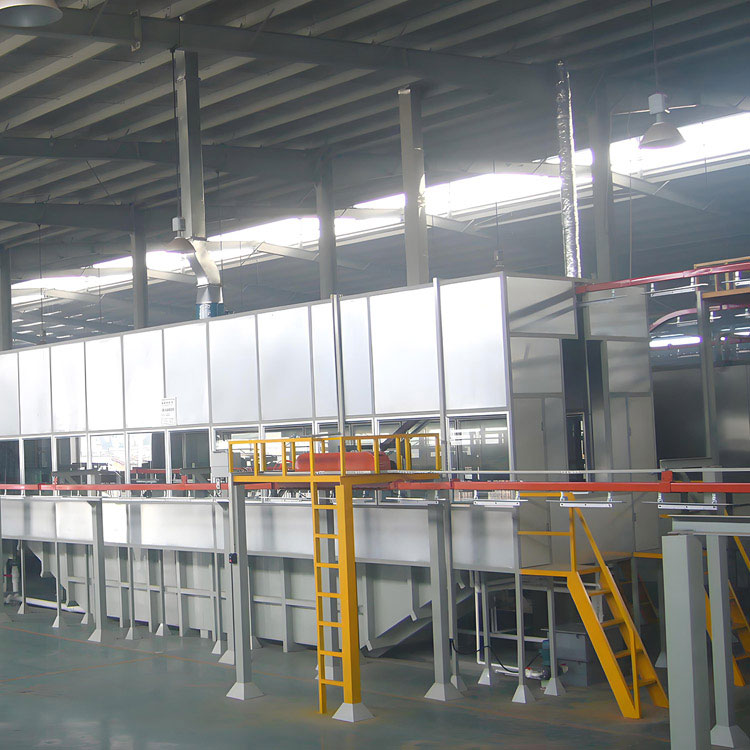

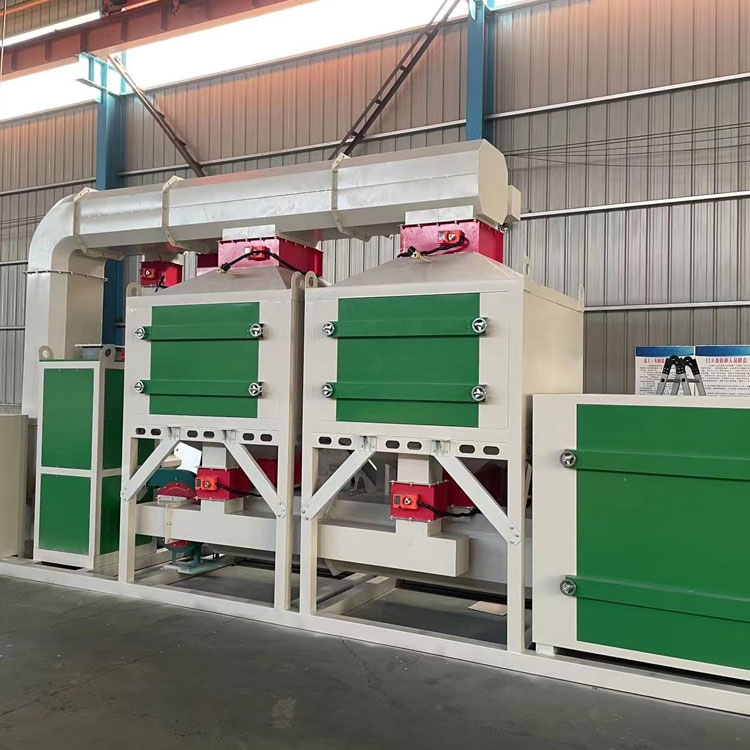

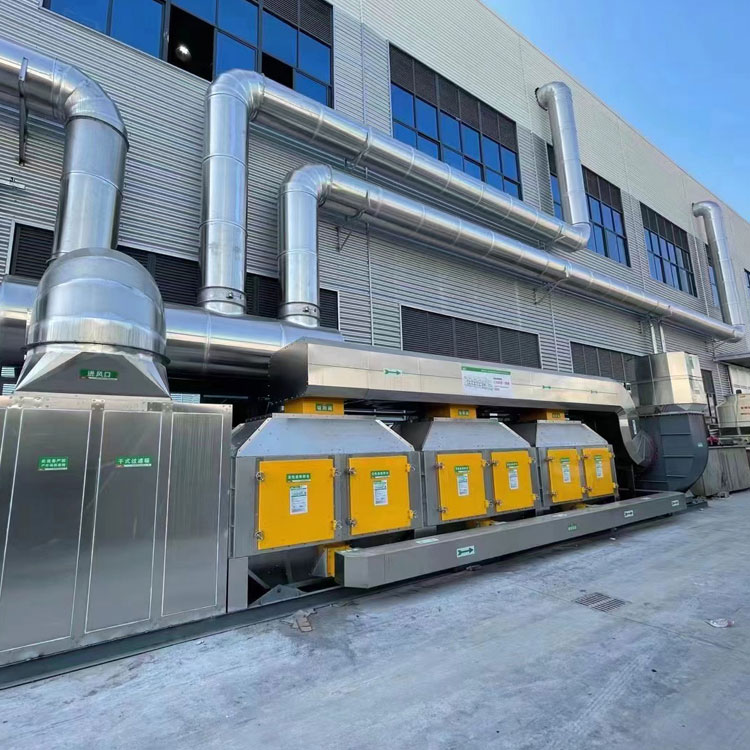

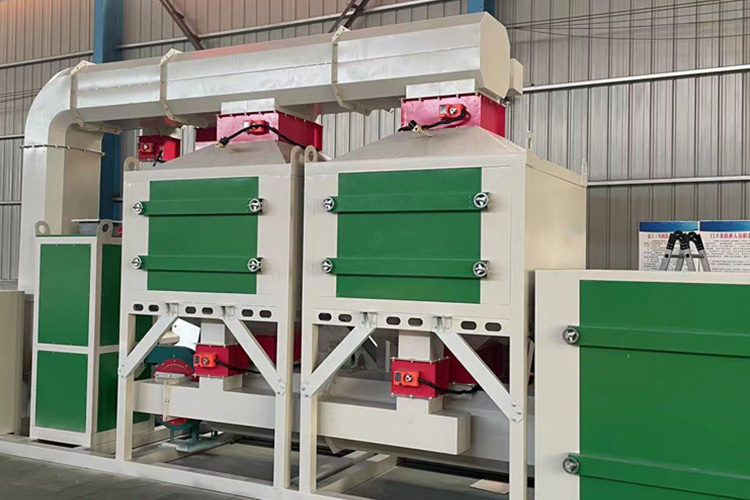

Pre treatment includes shed body, liquid storage tank body, spray system, tank liquid circulation and mixing system, tank liquid heating and temperature control system, exhaust system, water blowing device, and supporting waste gas treatment system. The exhaust gas recovery system complies with national standards and is discharged after passing through the cyclone tower equipment.

2. Composition of powder spraying equipment

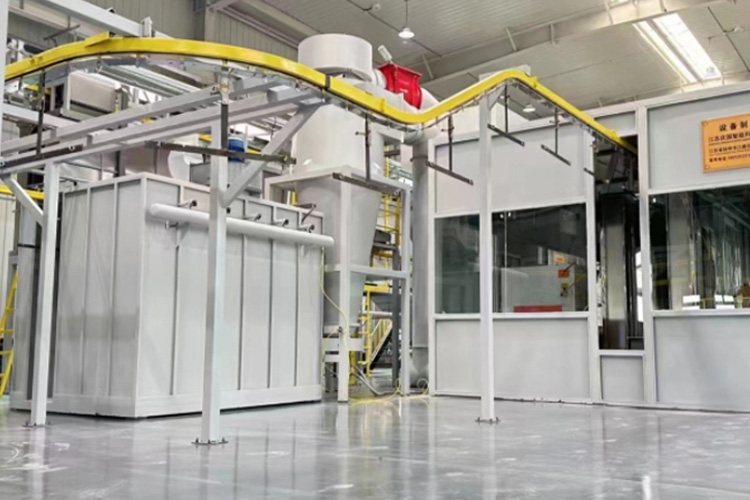

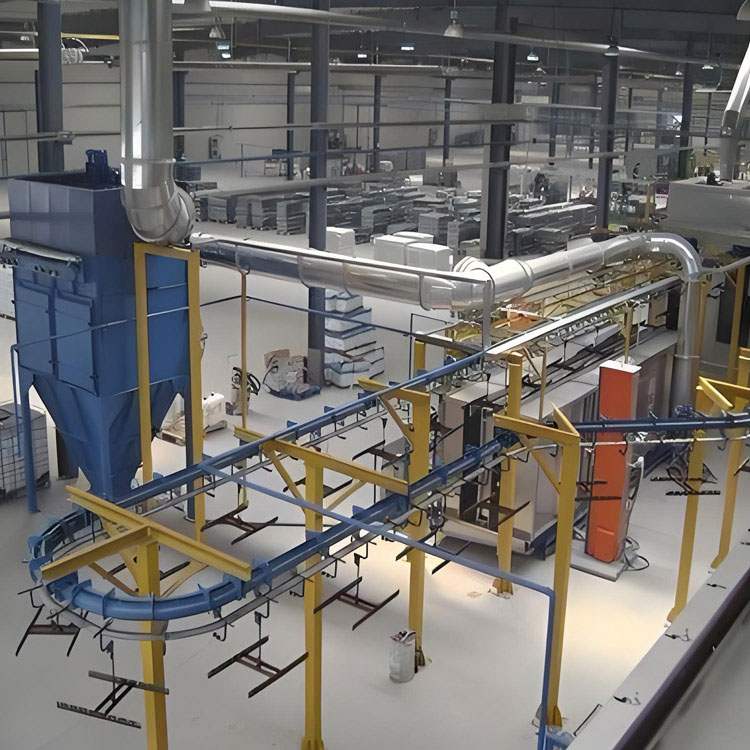

The powder spraying room includes the powder spraying room body, air supply and exhaust system, two-stage powder recovery system, lighting system, etc. The process of the recycling system is that the powder that has not been powdered during the spraying of the workpiece enters the recycling system, and is separated by the rotation of the large cyclone, so that the relatively large powder does not settle into the lower recycling powder bucket. After passing through the recycling tree pump, it enters the vibrating screen, and the screened powder enters the powder bucket for secondary use. The remaining powder will enter the secondary recycling through the air outlet at the top of the large cyclone, and be separated by standardized filtration. The clean air is discharged outdoors or in the operation workshop. The powder is blown back by pulse and enters the lower secondary recycling powder bucket, achieving the recycling effect.

3. The main structure of the electrophoretic coating production line for castings

The overall design of the equipment adopts a reasonable and effective design, which can withstand the additional force caused by the unbalanced wind pressure during equipment startup and the overall load-bearing capacity, achieving the optimization of the structure.

Characteristics of Casting Electrophoretic Coating Production Line:

① High cost-effectiveness

Based on the customer's product positioning and development strategy, and based on affordability, we aim to achieve the best cost-effectiveness.

② Advanced equipment

The design concept of striving for excellence, industrial equipment with high degree of automation, showcases the modern and advanced corporate style.

③ High adaptability

Meet current production requirements and reserve development space, considering the demand for increased production and improved quality in the future

④ Quality meets standards

Strictly following the IS0900 quality management system, every small step of the entire equipment installation is strictly monitored.
