I. Introduction

Qingguo Intelligent is a leading China waste gas treatment equipments manufacturer. Waste gas treatment equipment is designed to remove pollutants and harmful substances from industrial exhaust gases, vehicle emissions, and other sources of gaseous waste. These pollutants can include particulate matter, sulfur dioxide, nitrogen oxides, volatile organic compounds (VOCs), and many other harmful chemicals. The equipment plays a crucial role in reducing air pollution and protecting human health and the environment.

II. Types of Waste Gas Treatment Equipment

1. Absorption Equipment

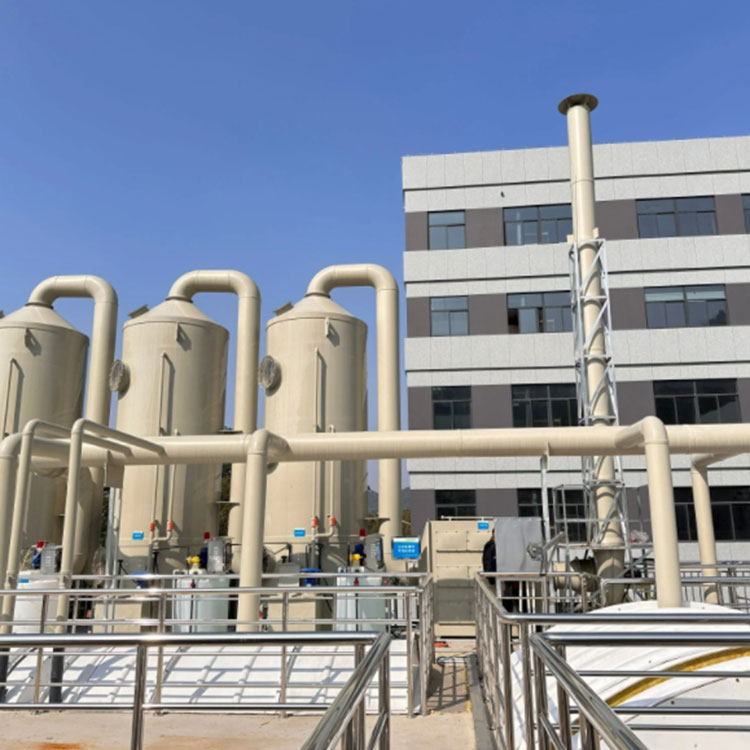

Wet Scrubbers:Wet scrubbers are one of the most common types of absorption equipment. They work by passing the waste gas through a liquid (usually water or a chemical solution). The liquid absorbs the pollutants from the gas. For example, in a flue - gas desulfurization (FGD) system used in power plants, a wet scrubber can use a limestone - gypsum slurry to absorb sulfur dioxide. The chemical reaction between the  and the limestone forms calcium sulfite and then calcium sulfate, which can be removed from the system.The efficiency of wet scrubbers can be very high, reaching up to 90% or more for some pollutants. However, they produce a wastewater stream that needs to be treated properly to avoid secondary pollution.Packed - Bed Absorbers: These absorbers contain a packing material (such as ceramic rings or plastic saddles) inside a column. The waste gas flows through the packing material, and the absorbent liquid is sprayed from the top. The packing material provides a large surface area for contact between the gas and the liquid, enhancing the absorption process. They are often used for the removal of VOCs and other soluble pollutants.

2. Adsorption Equipment

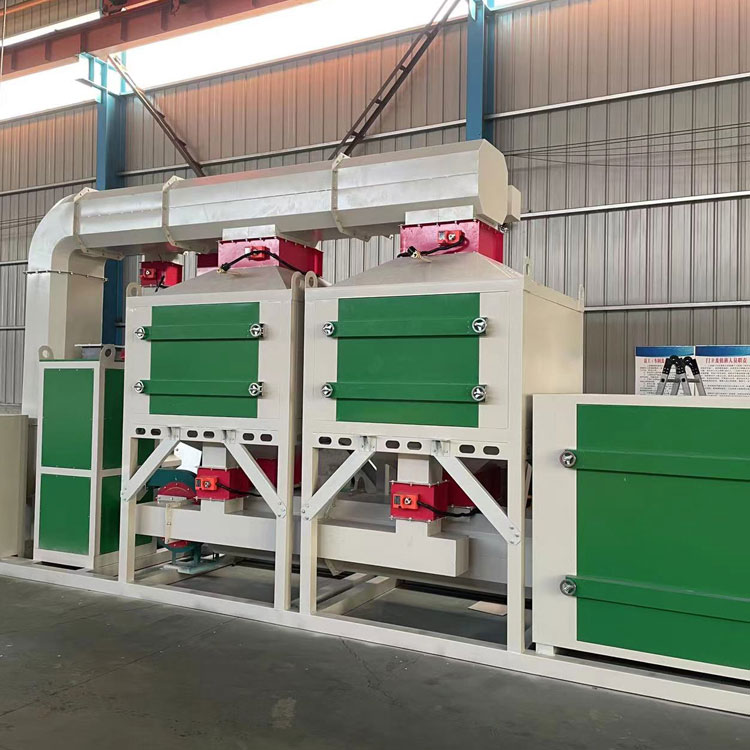

Activated Carbon Adsorbers: Activated carbon has a highly porous structure, which gives it a large surface area for adsorption. When waste gas passes through an activated carbon adsorber, the pollutants such as VOCs and certain odorous compounds are adsorbed onto the surface of the carbon. For example, in the printing industry, activated carbon adsorbers are used to remove solvent vapors from the exhaust air.Once the activated carbon is saturated with pollutants, it can be regenerated (by heating or other methods) to release the adsorbed substances and reuse the carbon. However, the regeneration process requires energy and careful handling to avoid the release of concentrated pollutants.Molecular Sieve Adsorbers: Molecular sieves are crystalline aluminosilicates with a regular pore structure. They can selectively adsorb certain molecules based on their size and polarity. For example, in the purification of natural gas, molecular sieve adsorbers are used to remove water vapor and other impurities such as carbon dioxide.

3. Combustion Equipment

Thermal Oxidizers:Thermal oxidizers, also known as incinerators, work by combusting the pollutants in the waste gas at high temperatures. The waste gas is introduced into a combustion chamber, where it is mixed with a fuel (such as natural gas or propane) and burned. Temperatures in the combustion chamber can reach 700 - 1000°C or more. This process is very effective for the destruction of VOCs and other combustible pollutants. The destruction efficiency can be as high as 99% for some substances.However, thermal oxidizers consume a significant amount of energy and can produce secondary pollutants such as nitrogen oxides if the combustion conditions are not properly controlled.Catalytic Oxidizers:Catalytic oxidizers use a catalyst to lower the activation energy required for the combustion of pollutants. The waste gas passes through a catalyst bed (containing materials such as platinum, palladium, or other metal oxides), and the pollutants are oxidized at a lower temperature (usually 300 - 500°C) compared to thermal oxidizers. This reduces the energy consumption. They are widely used for the treatment of VOC - laden waste gases in industries such as painting and chemical manufacturing.

4. Filtration Equipment

Bag Filters:Bag filters use fabric bags to filter out particulate matter from the waste gas. The gas passes through the bags, and the particles are trapped on the surface or inside the fabric. The bags are usually made of materials such as polyester, polypropylene, or fiberglass. They can effectively remove particles with a diameter of a few microns or larger. For example, in cement plants, bag filters are used to capture the cement dust from the kiln exhaust. The filtration efficiency can be up to 99.9% for particulate matter.Regular cleaning or replacement of the bags is necessary to maintain the filtration efficiency.Electrostatic Precipitators: Electrostatic precipitators work by charging the particulate matter in the waste gas and then collecting them on oppositely charged plates. A high - voltage electric field is created between the electrodes. The charged particles are attracted to the collection plates and are removed from the gas stream. They are very effective for removing fine particulate matter, such as fly ash from power plants. The collection efficiency can be over 99% for particles as small as 0.1 - 1 micron.

III. Considerations in the Use of Waste Gas Treatment Equipment

1. Treatment Efficiency

The efficiency of waste gas treatment equipment depends on various factors such as the type of pollutants, gas flow rate, temperature, and the design and operation of the equipment. It is essential to select the appropriate equipment and operating conditions to achieve the desired treatment efficiency. For example, for a waste gas stream with a high concentration of VOCs, a combination of adsorption and combustion equipment may be more effective than a single treatment method.

2. Energy Consumption

Many waste gas treatment methods, such as combustion and some types of adsorption regeneration, consume a significant amount of energy. It is important to consider energy - saving measures, such as using heat exchangers to recover heat in thermal oxidizers or optimizing the operation of pumps and fans in wet scrubbers.

3. Maintenance and Operation

Regular maintenance is crucial for the proper functioning of waste gas treatment equipment. This includes tasks such as cleaning filters, replacing adsorbents or catalysts, and checking the integrity of equipment components. The operation of the equipment also requires trained personnel to ensure correct parameter settings and safety.

4. Secondary Pollution

Some waste gas treatment processes can lead to secondary pollution. For example, wet scrubbers produce wastewater, and combustion processes can generate nitrogen oxides and other by - products. Appropriate measures need to be taken to handle these secondary pollutants to avoid further environmental harm.
