Automatic Spray Painting Production Line

Conveyor system of automatic spray painting production line: Function: The conveying system is the backbone of the automatic painting production line, responsible for transporting the workpieces to be painted from one station to the next. Common conveying methods include suspended conveyor chains and ground rail conveyor chains.For example, in automobile production, a hanging conveyor chain can suspend the car body and smoothly pass through various links such as paint spraying and drying rooms, ensuring the continuity and stability of the workpiece during the painting process.

Qingguo Intelligent is a leading China automatic spray painting production line manufacturer. Automatic paint spraying production line is an efficient and automated equipment combination used for painting operations on product surfaces. Here is a detailed introduction:


1.Basic components

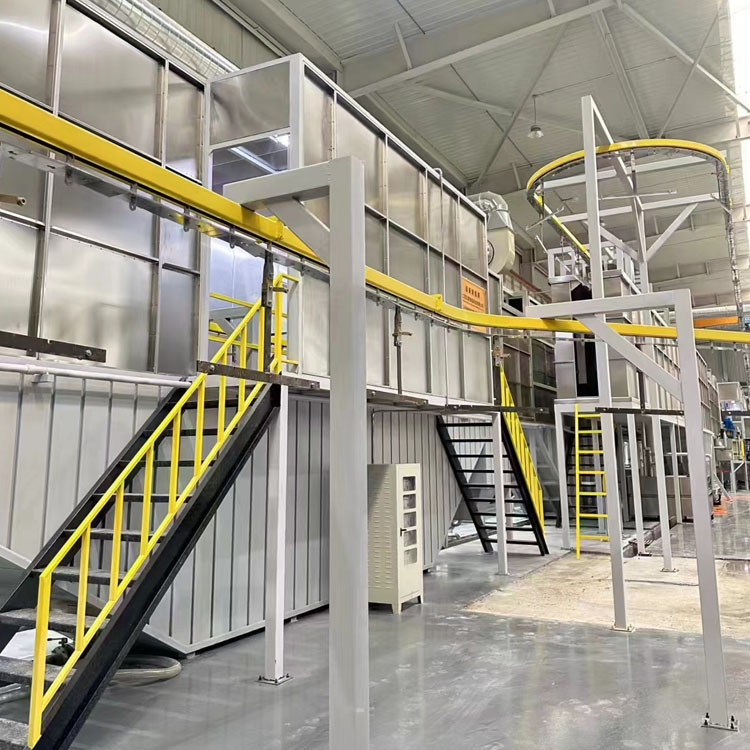

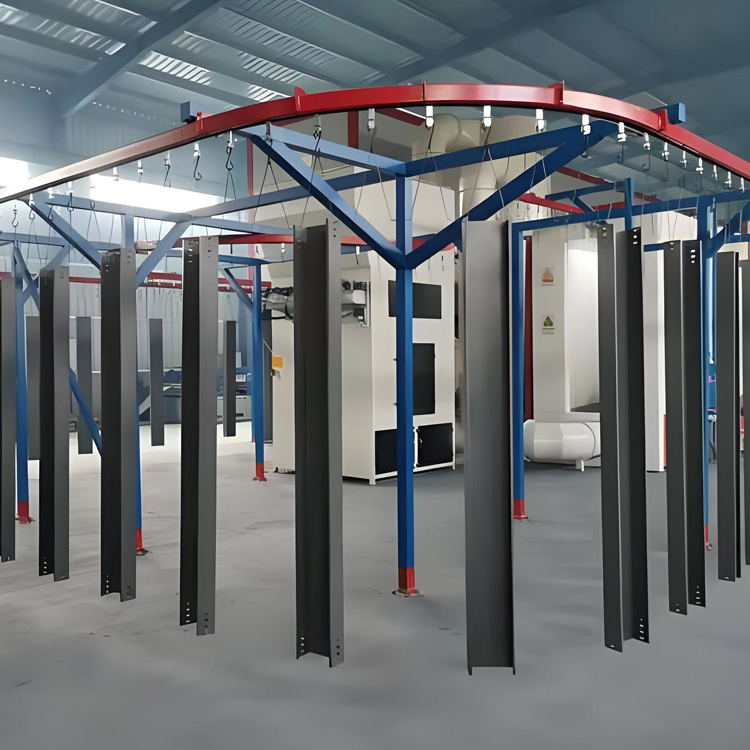

Conveyor system of automatic spray painting production line

Function: The conveying system is the backbone of the automatic painting production line, responsible for transporting the workpieces to be painted from one station to the next. Common conveying methods include suspended conveyor chains and ground rail conveyor chains.

For example, in automobile production, a hanging conveyor chain can suspend the car body and smoothly pass through various links such as paint spraying and drying rooms, ensuring the continuity and stability of the workpiece during the painting process.


Conveyor system of automatic spray painting production line Conveyor system of automatic spray painting production line

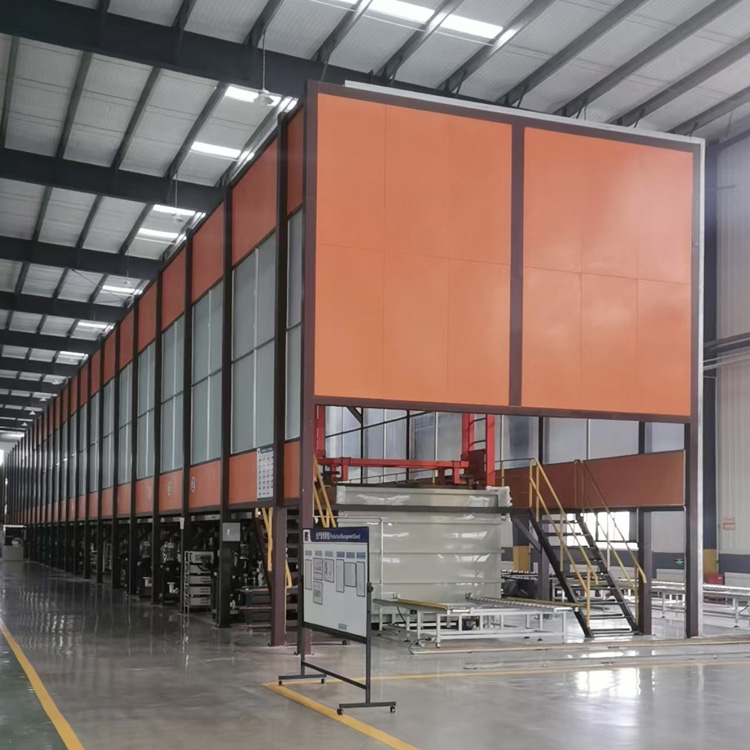

Spray painting room

Function: The paint booth is a closed space for painting operations, mainly used to provide a clean and well ventilated environment, so that paint mist can be effectively controlled. It is equipped with a ventilation system and paint mist filtration device.

Explanation: The ventilation system can discharge the paint mist generated during the painting process, while introducing fresh air to ensure the health and quality of the paint workers. Paint mist filtration devices such as activated carbon filters, filter cotton, etc. can capture paint mist particles and reduce environmental pollution.


Spray painting room Spray painting room


Spray gun system for automatic spray painting production line

Function: The spray gun system is one of the core components of the automatic spray painting production line. It includes a spray gun, a paint supply device, and a spray gun controller. The spray gun atomizes the paint and evenly sprays it onto the surface of the workpiece; The paint supply device ensures a stable supply of paint to the spray gun; The spray gun controller can accurately control the spraying parameters of the spray gun, such as spraying pressure, spraying speed, spraying angle, etc.

Example: In furniture production, by adjusting the parameters of the spray gun, different painting effects can be achieved according to the shape and material of the furniture, such as matte, glossy, etc. Some advanced spray gun systems can also automatically adjust the spraying angle according to the shape of the workpiece, improving the uniformity of spraying.


Spray gun system for automatic spray painting production line Spray gun system for automatic spray painting production line


Drying system for automatic spray painting production line

Function: The drying system is used to quickly dry and solidify the paint sprayed on the surface of the workpiece. It can be dried using various methods such as hot air drying and infrared drying.

Comparison: Hot air drying uses hot air circulation to heat the workpiece and dry the paint, which is suitable for various types of paints; Infrared drying utilizes the radiant heat of infrared radiation to efficiently heat the surface of paint, resulting in faster drying speed. It is particularly suitable for water-based paints that require higher drying speed.

Control system

Function: The control system is like the brain of an automatic paint spraying production line, which can centrally control and monitor various equipment in the entire production line. It can set and adjust production processes and equipment parameters, as well as monitor the operating status of equipment. Once a fault occurs, it can promptly alarm and take corresponding measures.

For example, in some modern automatic painting production lines, the operation of the production line can be remotely monitored in the control room through a PLC (Programmable Logic Controller) system. Operators can easily adjust parameters such as painting speed and drying temperature through a touch screen interface.


2.Advantages of Automatic Spray Painting Production Line


Improve production efficiency

Explanation: As the automatic painting production line operates automatically, it can continuously spray paint and dry workpieces, reducing the time interval of manual operation and the influence of fatigue factors. Compared with traditional manual spray painting, the production speed can be significantly improved.

Data: For example, in the production of some small hardware components, the production efficiency of automatic painting production lines can be several times or even tens of times higher than manual painting, and can process a large number of workpieces in a short period of time.

Improve the quality of spray painting

Reason: The spray gun system can accurately control the spraying parameters, ensuring the uniform distribution of paint on the surface of the workpiece. Moreover, the good environment and paint mist treatment measures in the paint booth can reduce the impact of dust and other impurities on the quality of paint spraying, making the surface of the painted workpiece smooth and uniform in color.

Case: In the painting process of electronic product casings, an automatic painting production line can achieve very fine painting effects, meeting the high requirements of electronic products for appearance quality.

Reduce labor costs

Explanation: The automatic spray painting production line reduces the reliance on a large number of spray painting workers. Although it requires certain technical personnel for equipment maintenance and parameter adjustment, the overall labor cost will be reduced. Moreover, automated operations can reduce the time workers are exposed to harmful paint mist environments and lower labor protection costs.

Comparison: For a medium-sized spray painting workshop, if an automatic spray painting production line is used, labor costs may be reduced by about 30% to 50%.

Good environmental performance

Explanation: The optimized design of the paint mist filtration and ventilation system, as well as the drying system in the paint booth, can effectively reduce the emissions of paint mist and volatile organic compounds (VOCs). Some advanced automatic spray painting production lines can also recycle and treat exhaust gases, meeting increasingly strict environmental requirements.

For example, in areas with strict environmental regulations, companies adopting automatic spray painting production lines can better control pollutant emissions and avoid punishment for violating environmental regulations.


3.Application areas of automatic spray painting production line


Automotive manufacturing industry

Usage: Car bodies, components, etc. all require painting treatment, and automatic painting production lines can meet the large-scale and high-quality painting needs of automobile production. It can quickly and accurately complete the painting work according to the different models and color requirements of the car.

Current situation: Almost all modern automobile manufacturing enterprises adopt advanced automatic painting production lines, and some high-end automobile brands' production lines are also equipped with robot spray gun systems, which can achieve more complex and refined painting processes.

Furniture manufacturing industry

Application: Surface treatment of furniture is an important part of furniture manufacturing. Automatic paint spraying production lines can spray paint on various types of furniture, such as wooden furniture, metal furniture, etc., to give the furniture surface a beautiful appearance and good protective performance.

Features: In furniture manufacturing, the automatic spray painting production line can flexibly adjust the spray painting effect according to the style of furniture and customer needs, such as imitating solid wood texture, metallic texture, etc.

Hardware products industry

Scope: Includes various small hardware components such as screws, nuts, door handles, etc. The automatic paint spraying production line can perform batch painting on these hardware products, improve production efficiency and product appearance quality, and enhance product market competitiveness.

Advantage: For complex shaped hardware products, the spray gun system of the automatic painting production line can achieve uniform painting of complex shapes through special programming and nozzle design.


Automatic Spray Painting Production Line
