Coating Electrophoresis Equipment

As the professional manufacturer, Qingguo Intelligent would like to provide you high quality coating electrophoresis equipment. Below, I will introduce these components and their functions in detail.

1.Electrophoresis tank

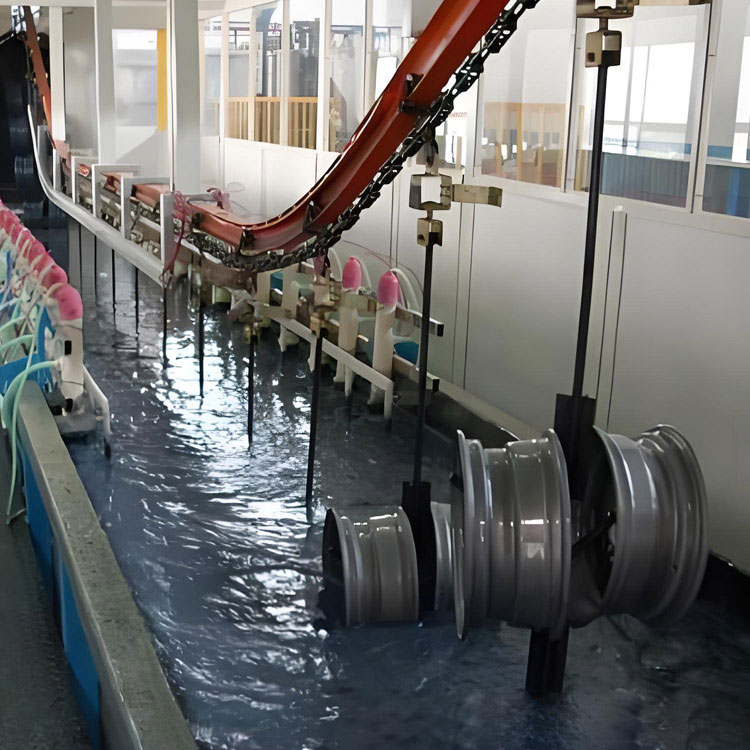

The electrophoresis tank is the core component of the coating electrophoresis equipment, used to store electrophoretic coatings and perform electrophoretic coating. The design of the electrophoresis tank needs to ensure the target film thickness and determine the tank capacity. The tank is usually divided into a main tank and an auxiliary tank, and the uniformity and stability of the tank liquid are maintained through a circulation pump and a circulation nozzle.

2.Pre processing equipment

The pre-treatment equipment includes processes such as oil removal, rust removal, water washing, neutralization, phosphating, etc., which are used to clean the surface of the workpiece, ensure that there are no impurities such as oil stains and rust, and ensure that the coating can adhere well. These devices are usually treated by spraying or soaking to ensure the cleanliness of the workpiece surface.

3.Electrophoretic power supply

The electrophoresis power supply provides the required direct current for the coating electrophoresis equipment, and controls the electrophoresis process by adjusting the voltage and current. The selection of voltage should be determined based on the type of coating and construction requirements to ensure the desired coating effect.

4.Ultrafiltration device

The ultrafiltration device is used to filter and purify the electrophoresis tank solution to remove impurities and particles, ensuring the stability and service life of the tank solution. Ultrafiltration devices usually use mesh or membrane filters to achieve filtration function through pressure difference.

5.Pure water device

The pure water device is used to prepare high-quality pure water to meet the water quality requirements of coating electrophoresis equipment. Pure water devices usually use technologies such as reverse osmosis or ion exchange to ensure that the conductivity and impurity content of pure water meet standards.

6.Drying equipment

Drying equipment is used to dry coated workpieces to form a strong coating film. Drying equipment usually uses methods such as hot air circulation or far-infrared radiation for heating to ensure that the coating on the surface of the workpiece can be uniformly dried.

7.Auxiliary device

Auxiliary devices include driving equipment, hanging devices, wastewater treatment equipment, etc., used to meet various needs in the electrophoretic coating process. The crane is used to lift workpieces into and out of the electrophoresis tank, the hanging device is used to suspend workpieces in the electrophoresis tank, and the wastewater treatment equipment is used to treat the wastewater generated during the electrophoresis coating process.

Coating electrophoresis equipment is an efficient and environmentally friendly coating production line that can achieve uniform coating and protection of the surface of workpieces. If you have any questions or needs regarding this device, please feel free to let me know and I will do my best to provide you with more detailed information and solutions.
