Electrophoretic coating line

Electrophoretic coating line is a surface treatment technology equipment based on electrochemical principles. The following is its detailed introduction:

Characteristics and advantages of electrophoretic coating line

-High coating quality:

It can form a uniform and dense coating on the surface of the workpiece, with excellent adhesion and corrosion resistance, which can effectively isolate external corrosion factors and extend the service life of the workpiece.

-High production efficiency:

With a high degree of automation, the entire coating process from pretreatment to drying can be controlled automatically, enabling large-scale production, reducing manual intervention, and improving production efficiency.

-Environmental protection and energy conservation:

The utilization rate of coatings is high, which reduces the generation and emission of waste compared to traditional painting methods. The electrophoretic coating process does not require the use of a large amount of solvents, reducing the emission of volatile organic compounds (VOCs), and advanced energy-saving design further reduces energy consumption.

-Wide applicability:

Not only suitable for metal surfaces, but also applicable to non-metal surfaces by adjusting the coating formula, widely used in many fields such as automobile manufacturing, home appliance manufacturing, and construction industry.

-Intelligent monitoring and adjustment: Advanced intelligent monitoring systems can monitor various parameters such as voltage, current, temperature, etc. in real-time during the painting process, and automatically adjust them according to the actual situation to ensure the best painting effect.

The main components of electrophoretic coating line

-Pre treatment equipment:

including equipment for pre cleaning, oil removal, rust removal, phosphating, water washing and other processes. Pre cleaning to remove large particle impurities and dirt from the surface of the workpiece; Using chemical methods to remove oil stains; Rust removal is often carried out by sandblasting or shot blasting to remove the rust layer; Phosphating is the formation of a fine and uniform phosphating film on the surface of the workpiece after rust removal, which enhances the adhesion of the coating; Water washing is used to remove waste liquids and residues generated during the treatment process.

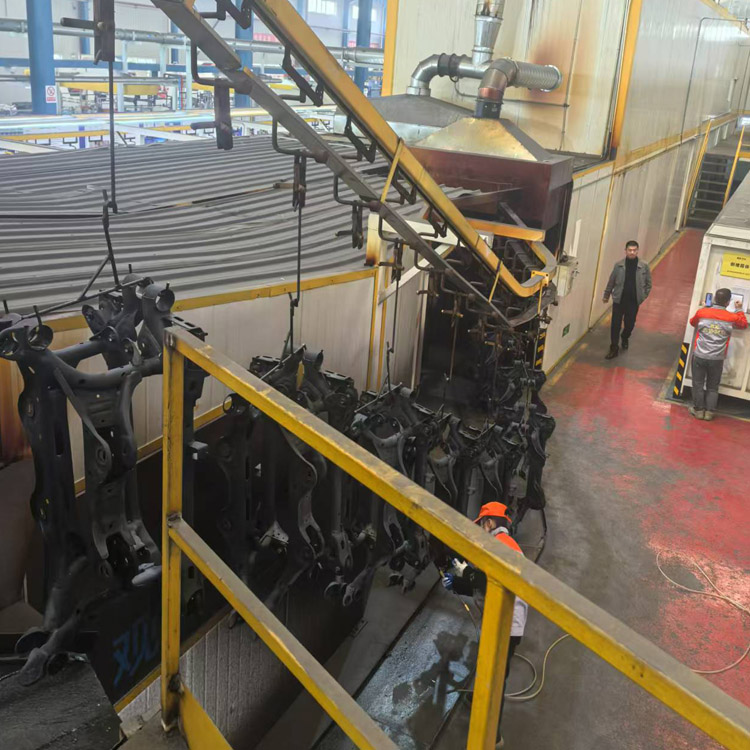

-Electrophoretic tank:

It is the core part of electrophoretic coating, which contains a mixture of electrophoretic paint (water-soluble coating) and distilled water inside. Under the action of an electric field, charged coating particles move towards electrodes with opposite charges and deposit on the surface of the workpiece.

-Ultrafiltration system:

used to control the concentration of impurity ions introduced into the workpiece, ensuring the quality of coating. Ultrafiltration membranes need to operate continuously to prevent dryness from affecting permeability and service life.

-Cleaning and drying system: The cleaning system generally uses ultrafiltration water washing to remove excess electrophoretic paint on the surface of the workpiece. The drying system solidifies the coating through heating, forming a dense and highly adhesive paint film.

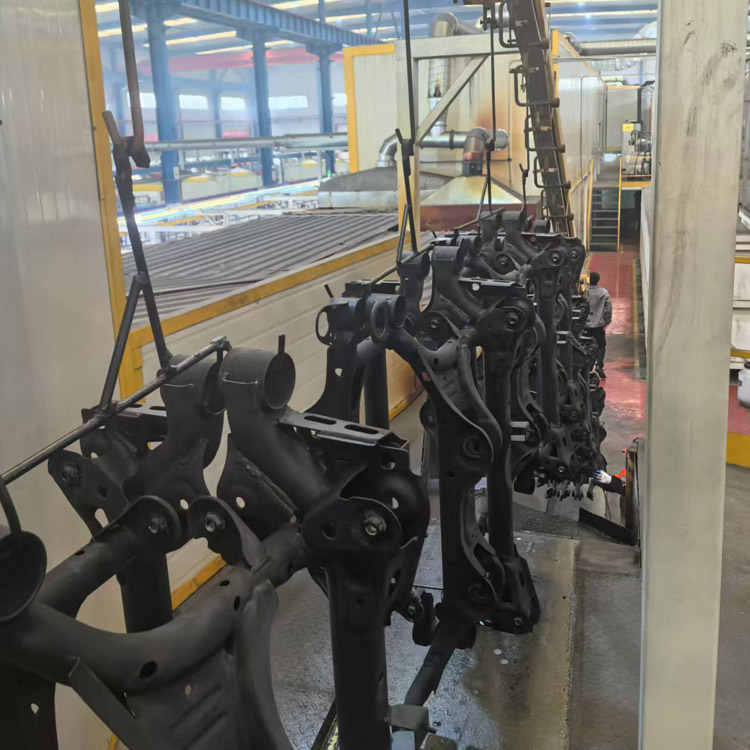

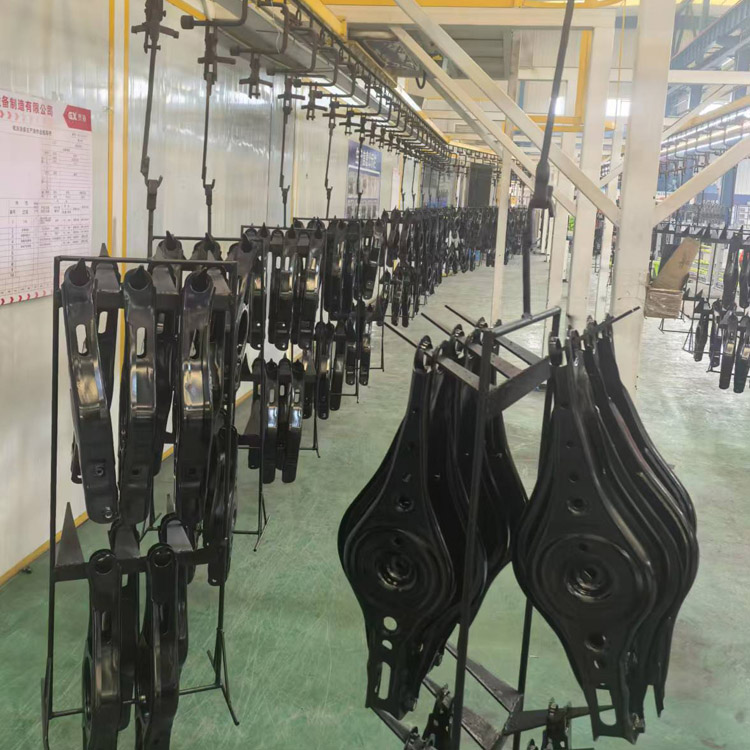

-Hanging conveyor chain:

Adopting a mechanized conveying method combining aerial suspension and ground sled, it runs smoothly, quickly and conveniently, achieving the conveying of workpieces along the entire line.

-Electric control system:

using PLC controllable programming, programming control is implemented according to the actual requirements of the production process, realizing fieldbus central monitoring, and automatic transfer operation in different zones.

The workflow of electrophoretic coating line

The general electrophoretic coating process for metal surfaces is: pre cleaning → online → degreasing → water washing → rust removal → water washing → neutralization → water washing → phosphating → water washing → passivation → electrophoretic coating → tank cleaning → ultrafiltration water washing → drying → offline.
