Cable Tray Painting Assembly Line

Find a huge selection of cable tray painting assembly line from China at Qingguo Intelligent. The design of the cable tray painting assembly line aims to improve production efficiency and coating quality, using modern automation equipment to ensure smooth connection between each step. This system can effectively reduce labor costs and improve product consistency and reliability. If you need more detailed technical or application information, please feel free to ask at any time!

Qingguo Intelligent is China manufacturer and supplier who mainly produces cable tray painting assembly line with many years of experience. The design of the cable tray painting assembly line aims to improve production efficiency and coating quality, using modern automation equipment to ensure smooth connection between each step. This system can effectively reduce labor costs and improve product consistency and reliability. If you need more detailed technical or application information, please feel free to ask at any time!

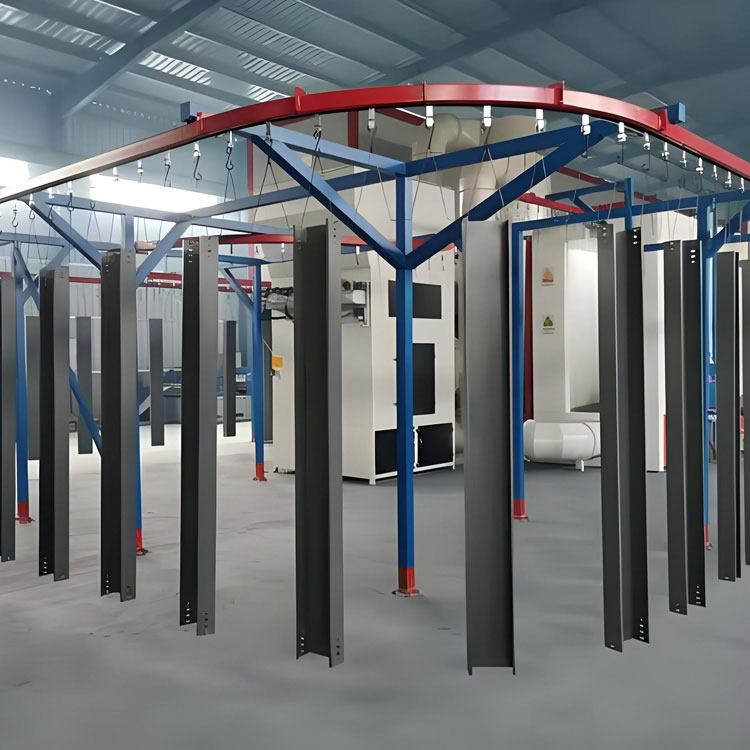

Cable tray painting assembly line Cable tray painting assembly line


Production process of cable tray painting assembly line

1. Pre processing stage:

-Cleaning: Remove oil and rust from cable trays to ensure that the surface is free of dust, grease, and oxides. Common cleaning methods include acid washing, alkali washing, and ultrasonic cleaning.

-Phosphating treatment (optional): Form a layer of phosphate film on the surface of the steel to increase the adhesion and corrosion resistance of the coating.

2. Drying stage:

-Pass the processed cable tray through a dryer to remove surface moisture and ensure the spraying effect.

3. Spray stage:

-Spray gun selection: Choose the appropriate spray gun (such as air spray gun or electrostatic spray gun) based on the properties of the coating.

-Coating preparation: Dilute and mix powder or liquid coatings appropriately according to product requirements.

-Spray process: Spray the prepared coating evenly on the surface of the bridge to ensure uniform coating thickness and no missed spraying.

4. Curing stage:

-Perform thermal curing treatment on the sprayed cable tray. Heating in an oven causes the coating to undergo a chemical reaction and solidify, forming a strong coating.

5. Quality inspection:

-Inspect the appearance and thickness of the coating to ensure compliance with quality standards. If it is not qualified, it needs to be reprocessed.

6. Packaging and Storage:

-Finally, package and store the qualified cable trays for shipment.


Equipment structure of cable tray painting assembly line

The cable tray painting assembly line generally consists of the following parts:

1. Pre processing equipment:

-Cleaning machine: used for cleaning and removing surface oxides of cable trays.

-Phosphating tank: If phosphating treatment is used, corresponding phosphating tanks need to be configured.

2. Drying machine:

-A common method for removing water after cleaning through heating technology is a hot air dryer.

3. Spraying equipment:

-Spraying machine: an electric or pneumatic spray gun used for coating spraying.

-Electrostatic spraying equipment: increases the adhesion of coatings and improves spraying efficiency.

4. Curing oven:

-Equipment that can successfully complete coating curing includes infrared curing furnaces or hot air circulation furnaces.

5. Conveyor system:

-Pipeline conveying equipment: It can be a chain conveyor or a drum line, used to transport cable trays from one process to the next.

6. Automation control system:

-Generally equipped with a PLC control system, it is used to automate the management of various links in the paint spraying assembly line and improve overall production efficiency.
